(8) Storing set values (described in Items (1) to (7) above)
 When the setting of the minimum master value is finished as the last step of the
setting procedure, “END” is shown on the alphanumeric display. When is
pressed in the middle of the set mode, “END” is also shown. Press to show
“WRITE” on the alphanumeric display.

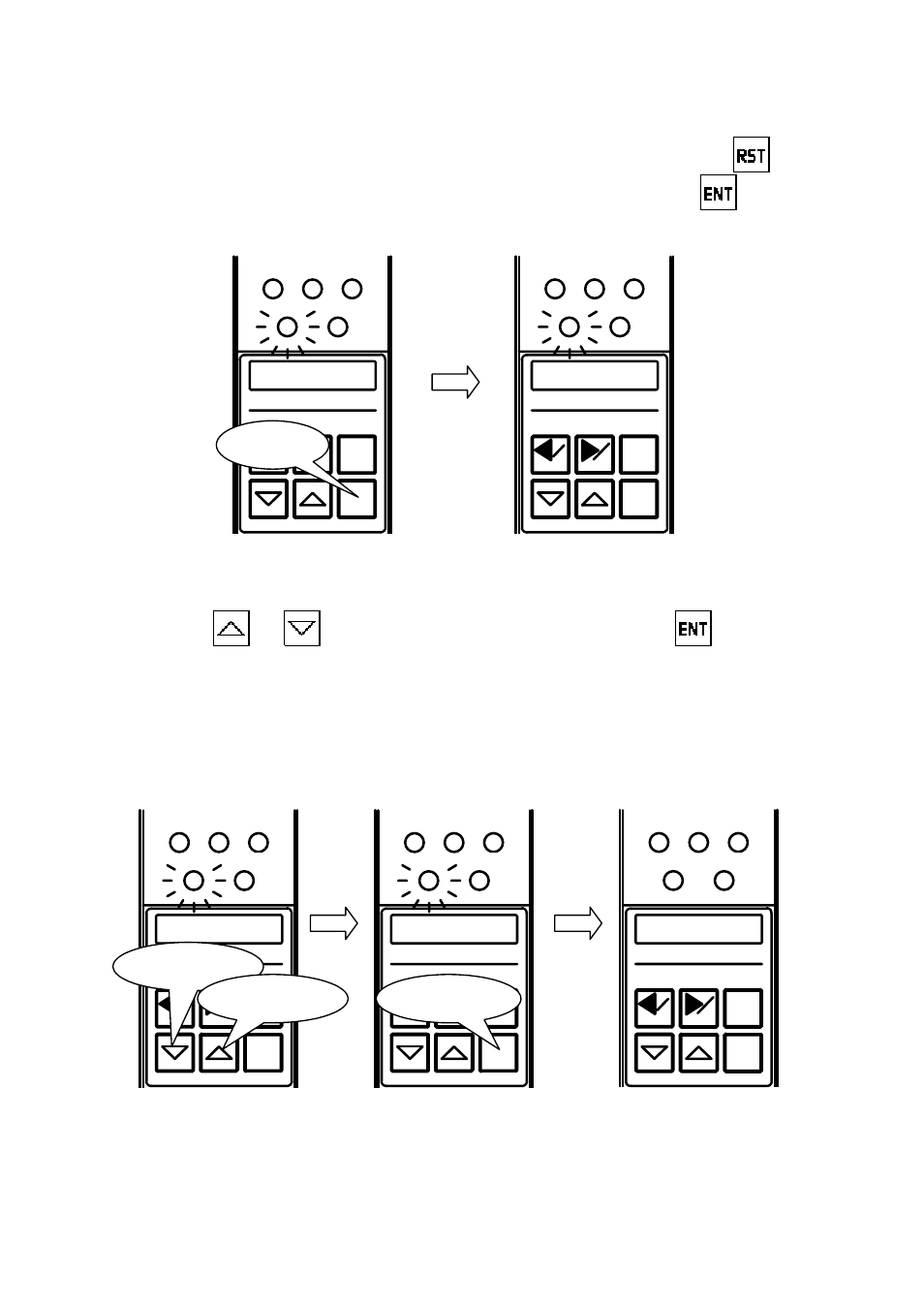

Fig. 9-17. Ending setting.
 Press or to select “WRITE” or “CANCEL”, and press to
determine the selection. When “WRITE” is selected, the current set values are
stored. When “CANCEL” is selected, the current set values are canceled, and
the previous set values are made effective. After this determination, the
instrument ends the set mode and returns to the measure mode.
Fig. 9-18. Storing set values.
2 1 3
S E T MAS
ENT
RST
SET MAS
END
Press
2 1 3
S E T MAS
ENT
RST
SET MAS
WRITE
2 1 3
S E T MAS
ENT
RST
SET MAS
CANCEL
Changes
Changes
2 1 3
S E T MAS
ENT
RST
SET MAS
9.030
2 1 3
S E T MAS
ENT
RST
SET MAS
WRITE
Determines
Measure mode
