20
 Press to determine the selected measuring range. The next step is setting
the shift value, and “SHIFT” is shown on the alphanumeric display.

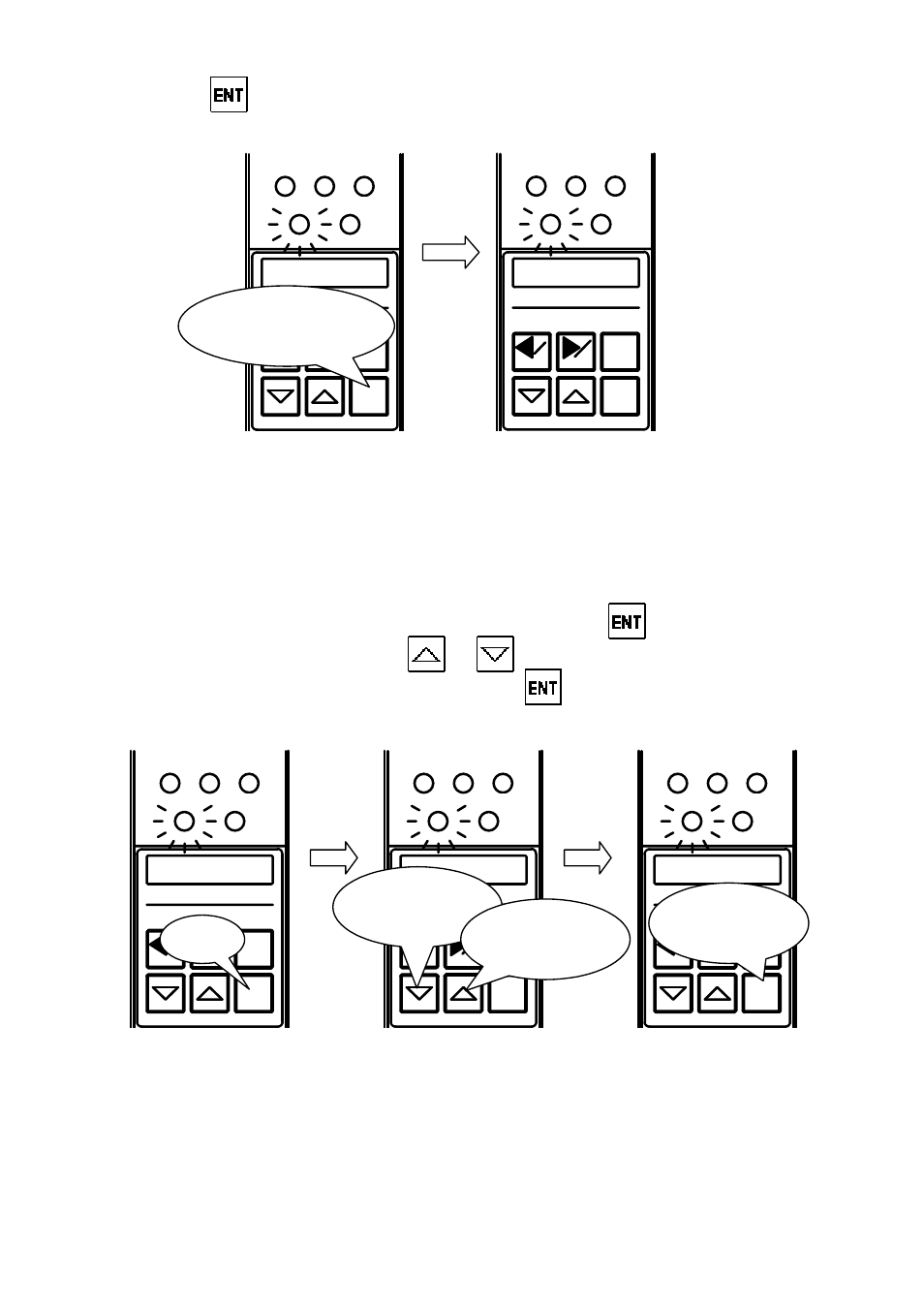

Fig. 9-5. Determining measuring range.
(3) Setting shift value
In the case of a one-side tolerance, for example, the measured value is shown at the
center of the bargraph display. When not using this function, set the shift value at 0.
 With “SHIFT” shown on the alphanumeric display, press . The current
notation unit is shown. Press or to change to the tolerance notation
in µm or the nominal notation in mm. Press to determine the selected
notation.
Fig. 9-6. Changing notation unit.
2 1 3
S E T MAS
ENT
RST
SET MAS
100
Determines
measuring range
2 1 3
S E T MAS
ENT
RST
SET MAS
SHIFT
2 1 3
S E T MAS
ENT
RST
SET MAS
SHIFT
Press
2 1 3
S E T MAS
ENT
RST
SET MAS
MM
Changes
notation unit
Changes
notation unit
2 1 3
S E T MAS
ENT
RST
SET MAS
MICRO
Determines
notation unit
