7. Mastering

7.1 Automatic mastering

In the measure mode, press for 2 sec or more.

The MAS LED below the bargraph display comes on orange, “MIN M.” appears on the

alphanumeric display, and the instrument changes to the master mode.

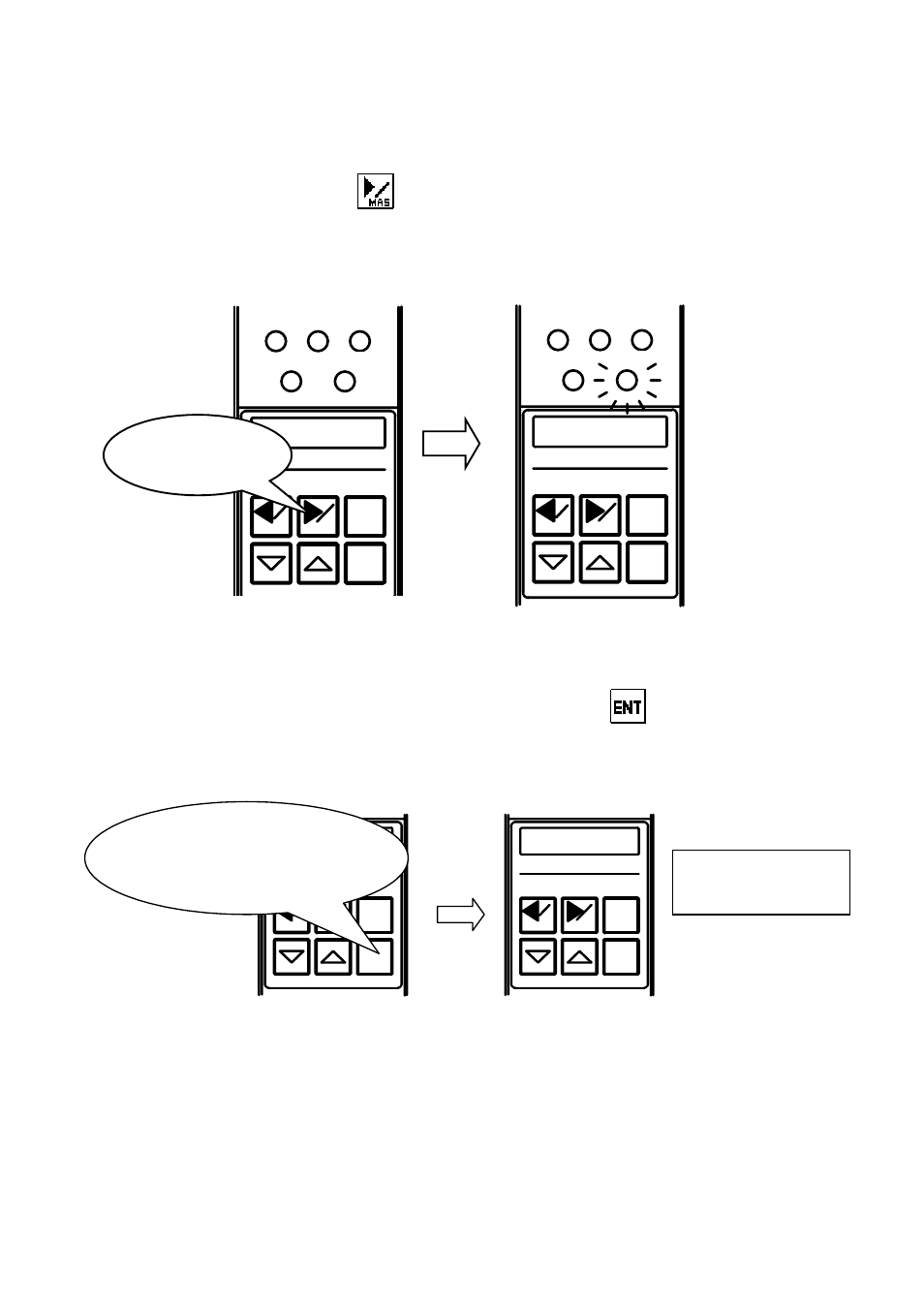

Fig. 7-1. Changing to master mode.

Set the minimum master in the measuring nozzle, and press . The instrument is

calibrated with the minimum master, and “MAX M.” is shown on the alphanumeric

display.

Fig. 7-2. Calibrating with minimum master.
