ELECTRICAL CONNECTIONS
4
33
OPTISENS MAC 100
www.krohne.com 04/2011 - MA OPTISENS MAC 100 R01 en

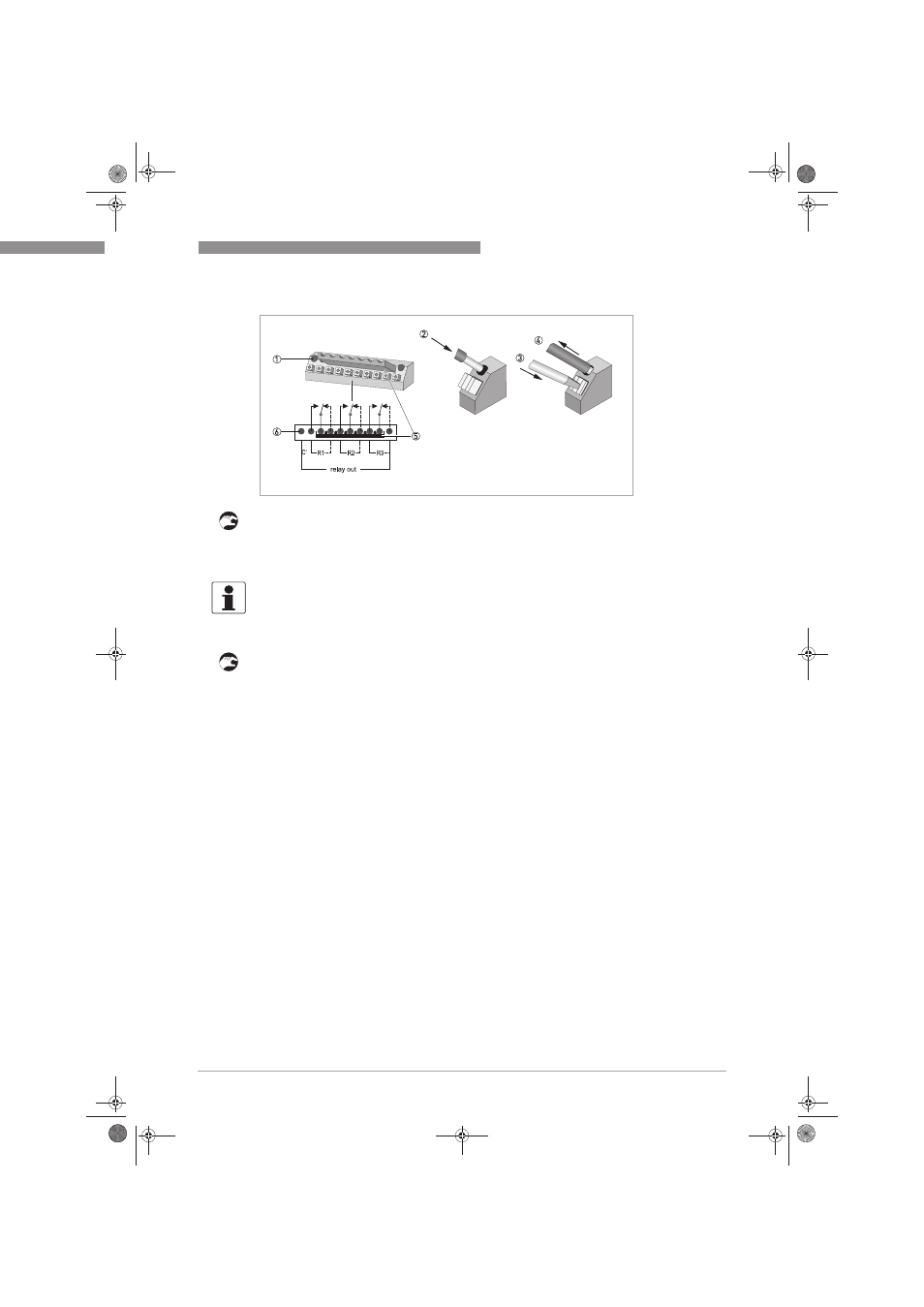

• Connect the cables to the single relay terminals (1) as described in the previous drawing (2),
note the required cable properties!
• If you want to release a cable from the relay terminals, first unlock the locking device (3) with
a suitable tool and pull out the cable (4).
• After you have connected all cables, refasten the cover of the relay outputs.
• Close the converter housing and tighten all screws of the housing.
Step 2: connecting the cables
INFORMATION!
If a switching voltage is applied to connection "C" (6 in the previous drawing), relay contacts R1,
R2 and R3 are supplied in parallel with the help of the link plug (5). This allows the voltage
switched from the relays to be passed on. You can remove the bridge if this supply is not needed.
