2-4 ATE-DMG 042314

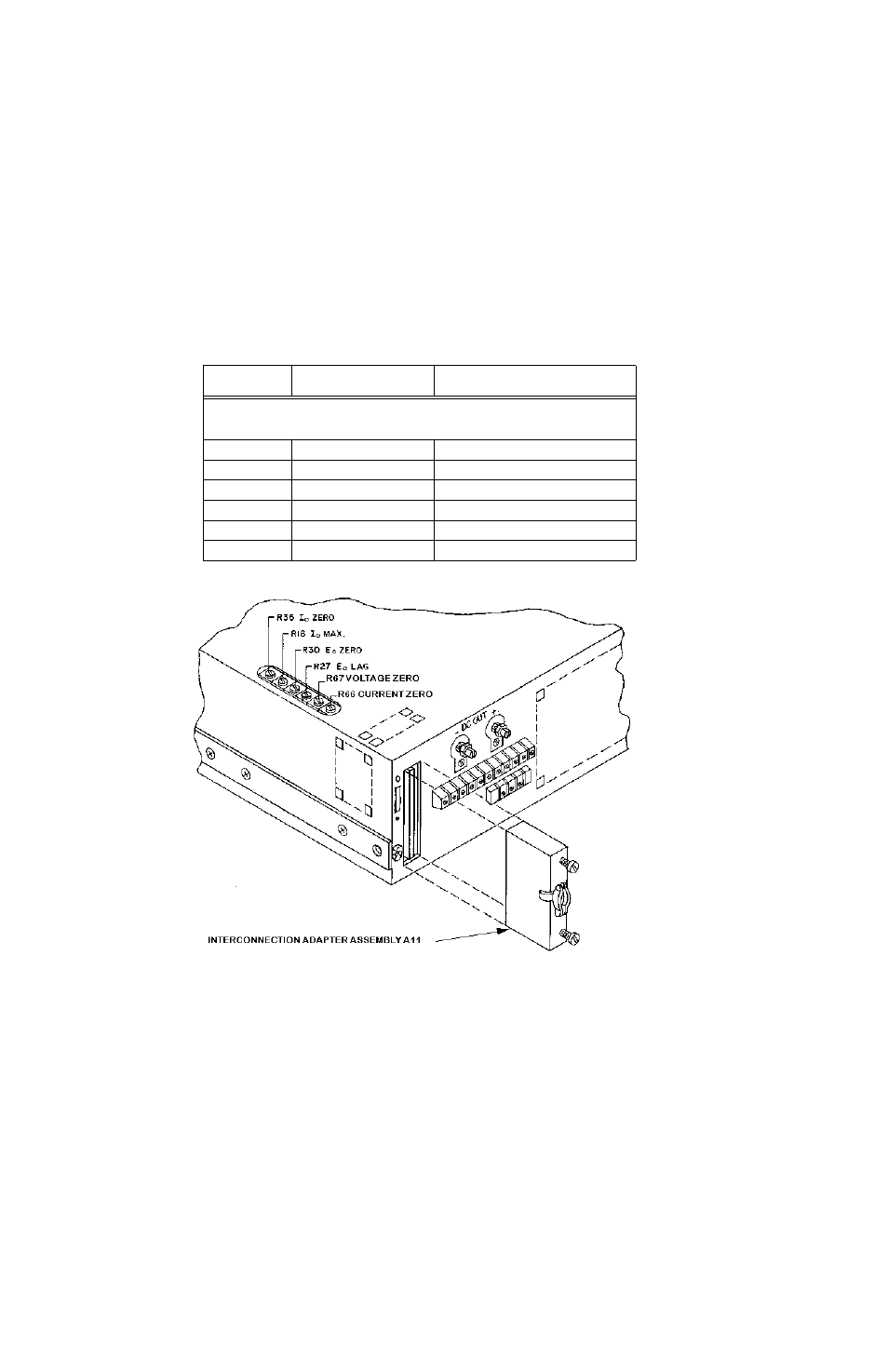

FIGURE 2-3. LOCATION OF INTERNAL CONTROLS
TABLE 2-3. INTERNAL CONTROLS AND THEIR FUNCTIONS
REFERENCE
DESIGNATION
CONTROL PURPOSE
CAUTION:
Adjustment of any internal control will affect digital control of the output voltage
and invalidate factory calibration (refer Calibration, Section 4).
R18 lo MAX Maximum Output Current
R27 Eo LAG Voltage Channel Stability Control
R30 Eo ZERO Voltage Channel Zero Control
R35 lo ZERo Current Channel Zero Control
R68 PREAMP CURRENT ZERO Offset Zero Control for CURRENT PREAMP
R67 PREAMP VOLTAGE ZERO Offset Zero Control for VOLTAGE PREAMP
