Part No. 4801-5093 Rev 4-08 Unitized System Page 9

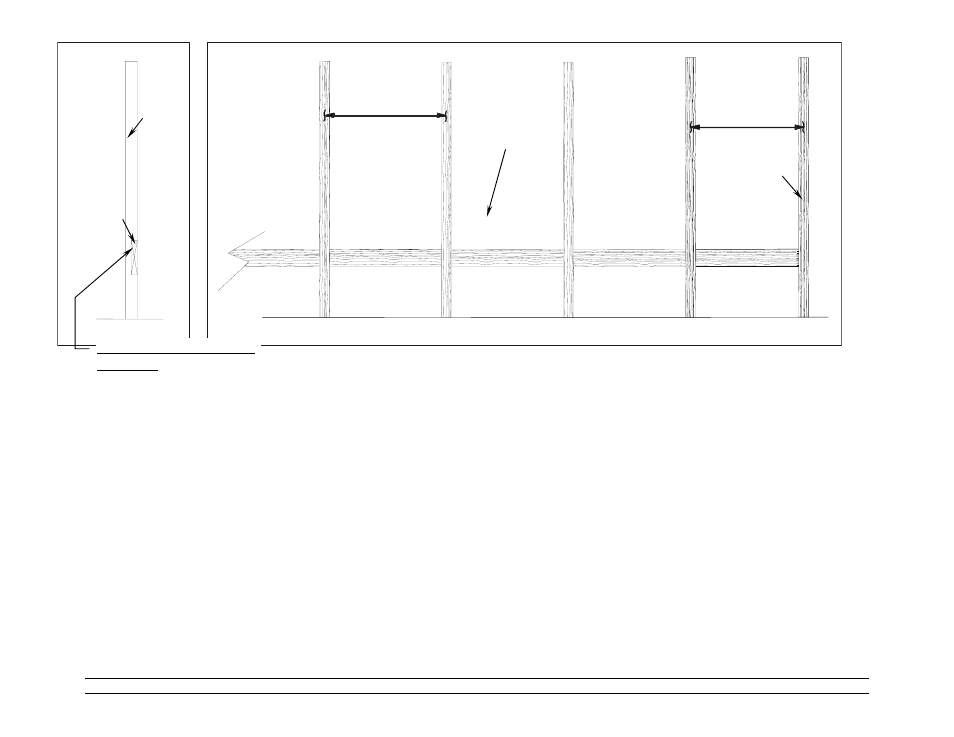

Front View
Framing for Agricultural Structures
1. Refer to Page 7 Installation Cross-Section for the framing dimensions of the
pads you are installing.
2. Make opening in wall equal to the length of pad and the height of pad.
3. Frame in opening with treated lumber as shown above. Ensure boards are
level.
NOTES
1. Use steel equivalent to frame opening if installing
Unitized system to steel building.
3. Be sure that the 2
″
x 6
″
board is level and flush with
the front side of the posts as shown in diagram at
left.
2 x 6
″
board
(or steel equiv.)
4 x 4 ″
post
(or steel
equiv.)
End post of
system
Set posts on
5 ft (1.5 m)
centers
5 ft. (1.5 m)
center-to-center
OPTIONAL 2x6" FILLER
BOARDS
If your house has a filler,
such as tin or concrete
kneewall, it may not be
necessary to install 2x6"
filler boards.
If filler boards are
installed,
fit 2x6" filler boards in
between posts and flush
with front of posts.
Bottom of
Pad. *
*Pads come in 4 ft, 5 ft. or 6 ft. Heights.
Pads come in 4 in. or 6 in. thickness.
