Top Covers and Top Flashing
After completing the curtain installation, and setting and
testing the limit switches on the motor, install the top covers.

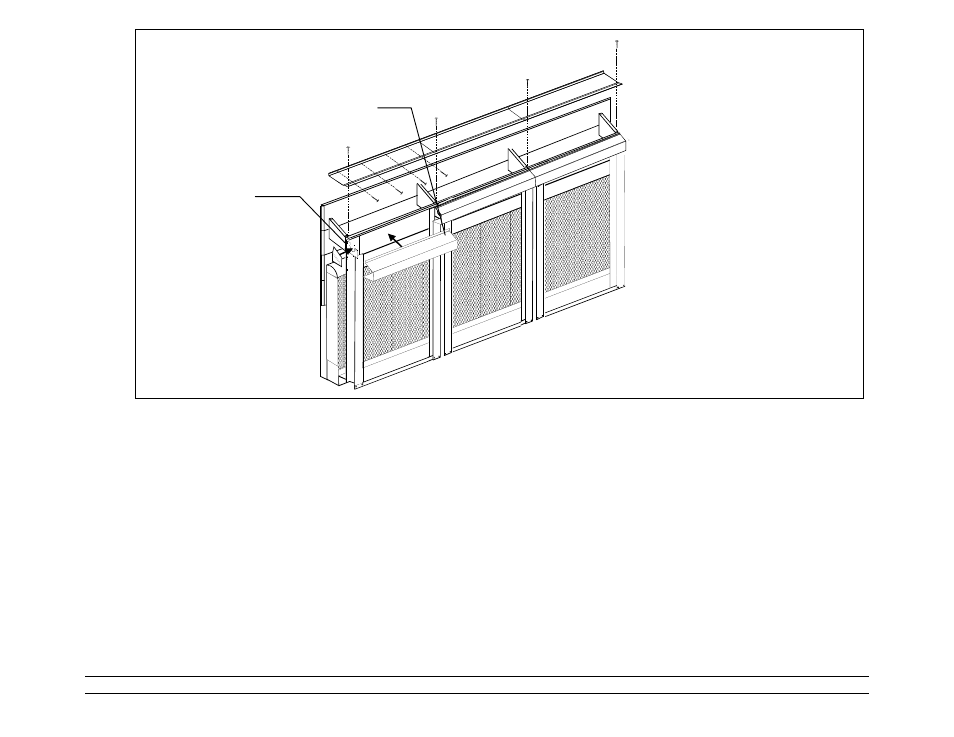

1.
Place top covers as shown.
2.
Attach top covers to back plate with sheet metal screws.
3.
Attach end cap to each end of curtain system as shown.
4.
Fit Top Flashing to top of support brackets.
5.
Bolt back flashing to stringers with 1/4x1 ½ hex lag
screws.
6.
Attach flashing to top of support bracket with #14x1 tek
screw located 1/2
″ from edge of bracket.
NOTE: For clarity, drive
pipe is not shown in this
view.
Attach Top Cover over
drive pipe and
mounting bracket.
End Cap
