Back plates – Hired-Hand Mega-Cool rev 4-08 User Manual
Page 32

Part No. 4801-5093 Rev 4-08
Unitized System
Page 32
Back Plates
1.
Back plates attach to mounting brackets with sheet metal screws.
2.
Attach screws through topmost holes of back plate. (NOTE: The lower screw
holes are for attachment of vertical members. Do not install screws through
lower holes at this time).
3.

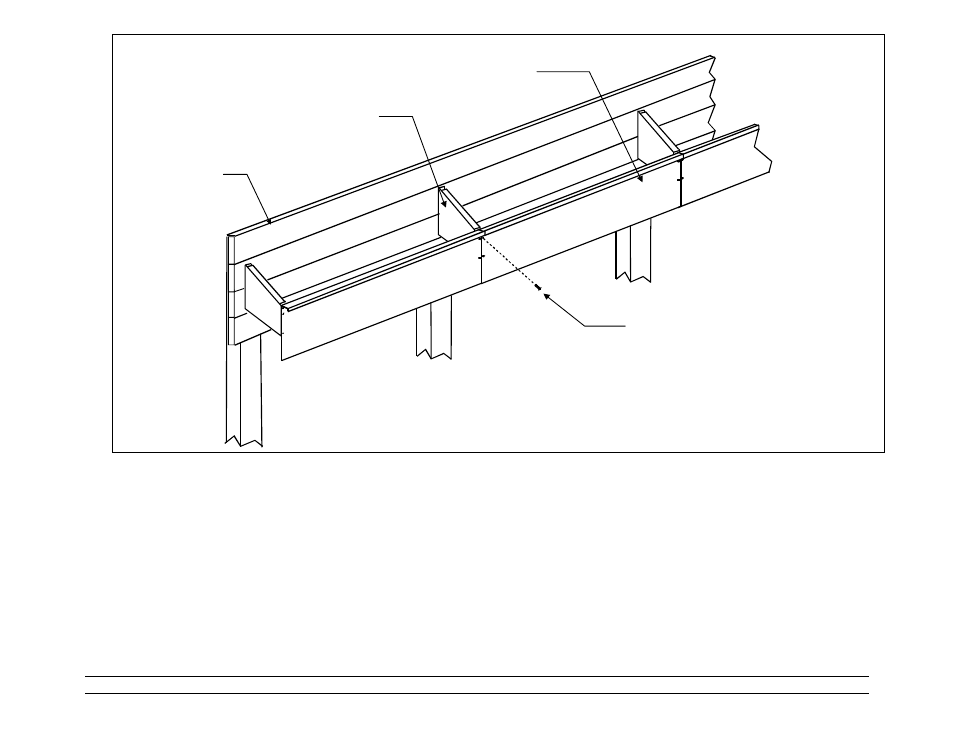

Start at one end. Attach all back plates as shown in diagram above
Top mount ing
bracket
Back plat e
At t ach back plat es
To bracket s wit h
sheet met al screws.
Wall
boards
