Side view, Top mounting brackets – Hired-Hand Mega-Cool rev 4-08 User Manual
Page 31

Part No. 4801-5093 Rev 4-08
Unitized System
Page 31
Top Mounting Brackets
1.
Install top mounting brackets for curtain installation. Mount end bracket in line
with end of cool cell system. Vertically position each bracket distance
″C″
from top 2
″x 6″ board as shown above (Refer to Installation Overview for the
framing you are installing, page 3 or 4).
2.
Top mounting brackets should be spaced by the horizontal distance given in
table at left depending upon which system you are installing.
3.
Secure top mounting brackets to wall board with ¼ x 1.5 Lag screws.

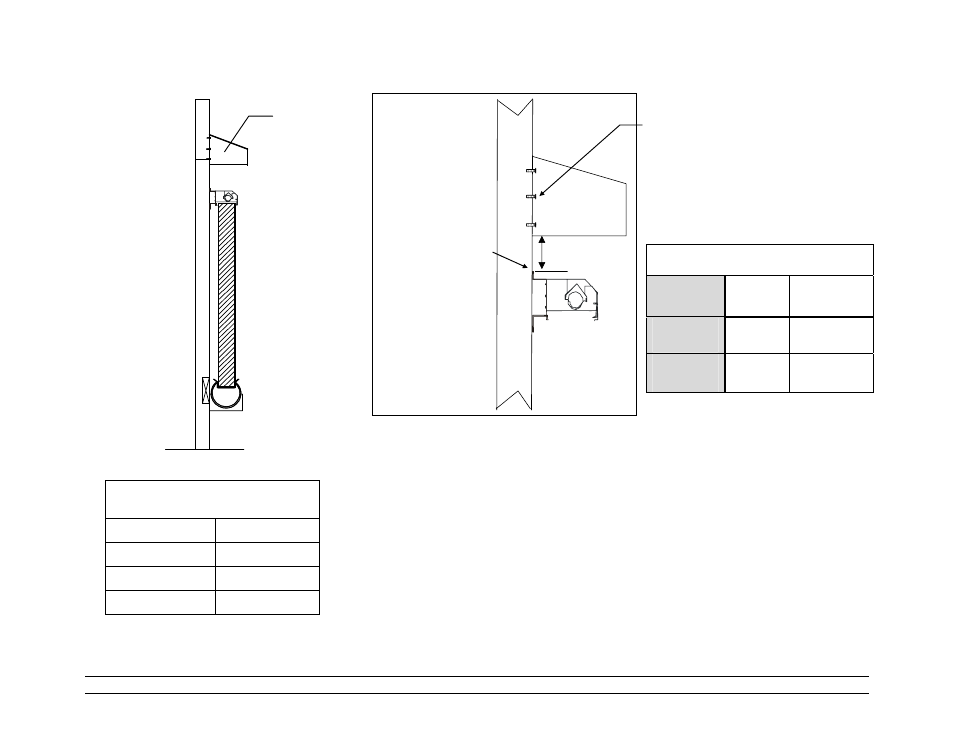

Side View
Horizontal Spacing
For Top Mounting Brackets
Back Plate
Spacing
8 ft.
4 ft.
10 ft.
5 ft.
12 ft.
6 ft.
Insert ¼ xx 1.5 Lag Screws through
flange of bracket.
Make sure 2
″x 6″ board is at
proper height. See tables on
pages 3 & 4.
″C″
Top
mounting
bracket
Distance
″C″
Framing
System
4
″ Pad
6
″ Pad
2
″ x 2″ &
2
″ x 6″
0.25
″ 0.25″
Single
2
″ x 6″
3.25
″
3.25
″
Measure from
top of mounting
flange.
