8” pipe support brackets – Hired-Hand Mega-Cool rev 4-08 User Manual
Page 11

Part No. 4801-5093 Rev 4-08
Unitized System
Page 11
8” Pipe Support Brackets
1.
Install the 8" pipe support brackets so the system will have 1" of drop toward the pump for proper water supply. Determine the height at
which the bottom of the Unitized system should be mounted above the ground. Make a mark on each end post to represent the height.
NOTE: If the Unitized System is being installed for a Horticulture Application, position bottom of each support bracket one inch
above the bottom stringer as shown.
2.
Stretch chalk line between marks of end posts and mark all posts of system.
3.
For each post of system, align bottom edge of metal support bracket with mark on post. Securely mount support brackets on
centers of 4” x 4” or steel equivalent columns, not more than 5 ft. (1.52m) O. C. (on center) for agriculture applications or not
more than 6 ft. (1.83m) O.C. for horticulture applications.
4.
Secure support brackets to wooden posts with ¼ x 2" Lag screws, or secure support brackets to steel posts with #14 x 1" Hex Head TEK
screws
.

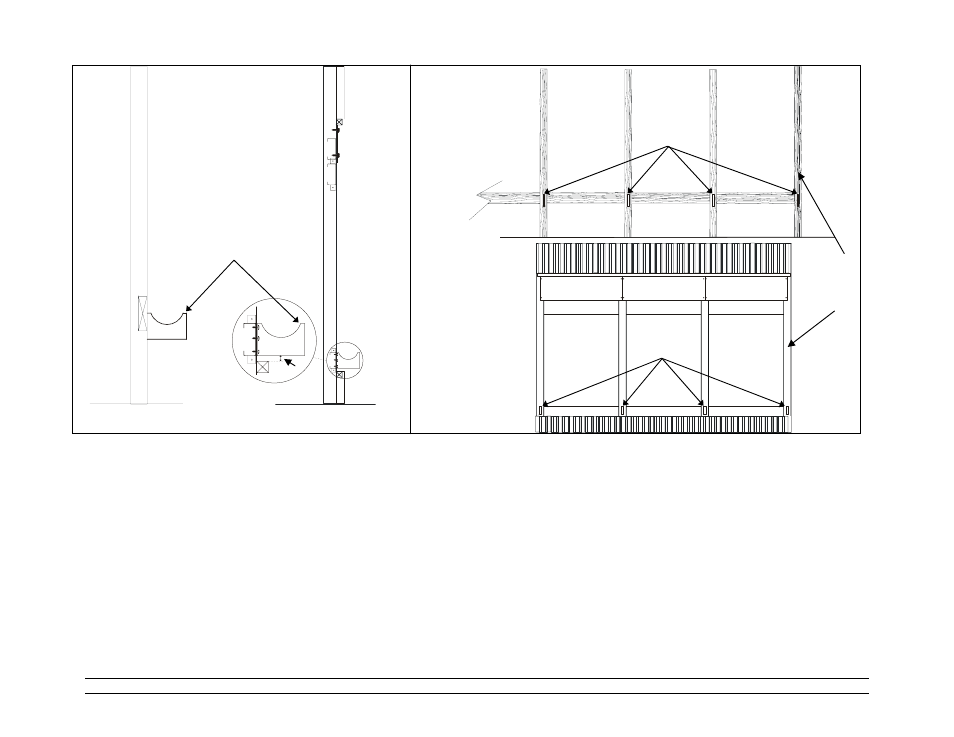

Agriculture
Application
(Side View)
Horticulture Application
(Side View)
8” Pipe
Support Brackets
8” Pipe Support Brackets
1 in.
(2.54 cm)
End Post
at Pump
side of
system.
8” Pipe
Support Brackets
Horticulture Application
(Front View)
Agriculture
Application
(Front View)
