Page 15

Part No. 4801-5093 Rev 4-08
Unitized System
Page 15

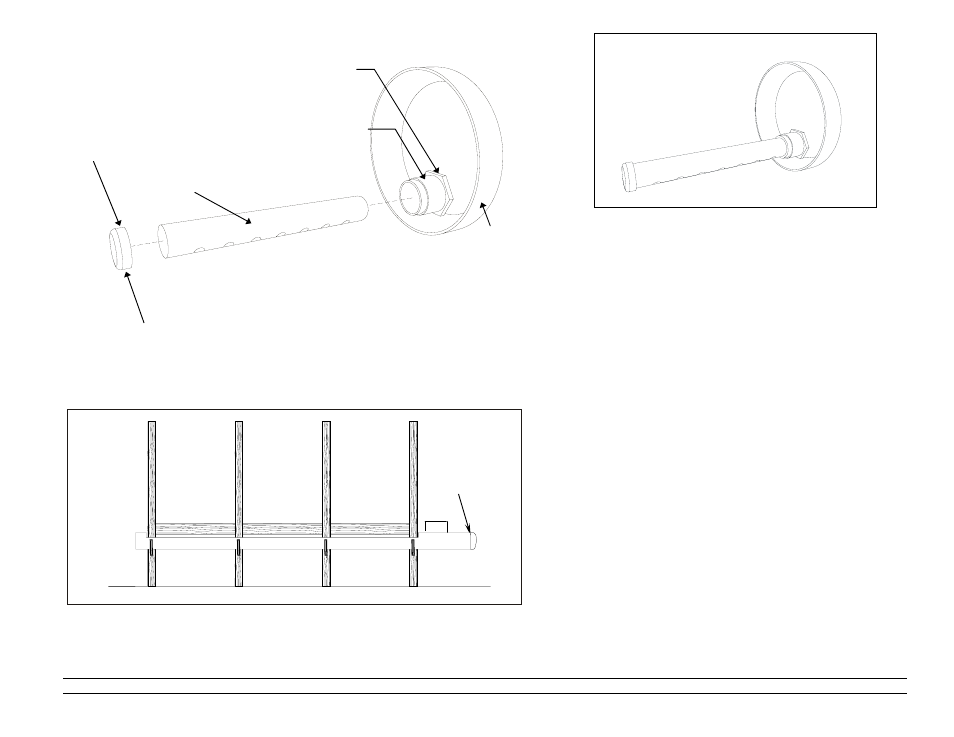

End Cap Assembly
NOTE: End cap assembly shown above-right glues onto the pump
side of the reservoir.
End cap for connecting
reservoir to pump supply
line.
NOTE: Holes must be
pointed downward.
Rubber
Gasket
1028-5003.
1 ½” Tank
Head
Adpt. Fitting
1021-6020.
1 ½” Tank
Body
Adpt. Fitting
1021-6021
PVC Cap, 1-
1/2”
1021-6017
Pick-Up Pipe,
1-1/2” x 2’
0406-5007
IMPORTANT!
Be sure to glue end cap onto
end of suction pipe! This will
affect the way pump will
prime
!
End
Cap
Install PVC End Caps
1. Glue 1 ½" end cap of Pick-Up Pipe onto end of pipe as
shown in diagram above left. Rotate Pick-Up Pipe to orient
holes facing downward. Glue Pick-Up Pipe into pipe
adapter fitting on inside of end cap as shown above.
2. Glue PVC end cap assembly into 'In-Line Pump side' of
reservoir.
IMPORTANT! Before gluing, rotate PVC end cap
assembly to place Pick-Up Pipe at bottom of reservoir.
