Connect In-Line Pump to
Spray Line
NOTE: The total vertical height of pipe sections in
the following instructions must reach from In-Line
Pump to level of spray line. Adjust lengths of pipe
sections as required for proper height.
1. Attach PVC pipe section to outlet of In-Line Pump
with union.
2. Attach 1" (2.5 cm) dia. PVC extension with ball
valve to open end of pipe. This is used as an exhaust
port to drain system.
3. Extend PVC pipe section with ball valve to height of
spray line. Attach 90
° elbow at top of pipe section.
4. Add PVC pipe section with union to connect elbow
to spray line as shown in diagram.
5. Slide In-Line Pump cover over the In-Line Pump
and fasten with screws to the wood platform.
IMPORTANT! Refer to Diagram on page 27
for additional spray line
connections for systems
greater than 80 ft. (24.4m)

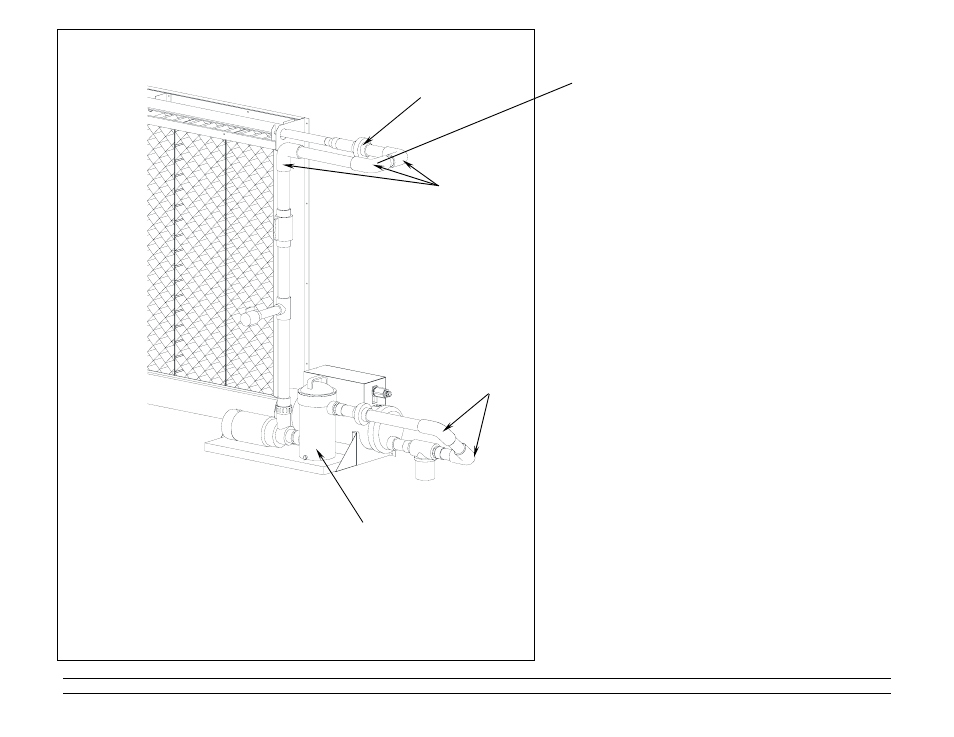

Union
Elbow
Strainer Basket
NOTE: Pump cover
not Shown for
clarity
IMPORTANT WATER FLOW INFORMATION!
The water flow can be adjusted using ball valves (flow regulators)
to ensure adequate water flow through system. The pump can
supply adequate pressure to systems up to 80 feet in length.
Lengths up to 120 feet can be accomplished when the Center-
Mount System is installed.
Elbow
