Attaching curtain – Hired-Hand Mega-Cool rev 4-08 User Manual
Page 59

Part No. 4801-5093 Rev 4-08
Unitized System
Page 59
3.
Pull the back panel (panel with largest hook & loop strip) upward underneath the drive pipe and attach to the
hook & loop strips on the back plate. Align top of curtain even with top of hook & loop strip on back plate.
Stretch the curtain taut. Press curtain firmly to secure.
4.
Locate the center panel and attach the hook & loop strip on the edge of this center panel to the hook & loop
strip on the drive pipe. Pass the center panel underneath the drive pipe before securing hook & loop strips to
the drive pipe.
5.
The front panel of the curtain passes underneath the top bar. The hook & loop strip of the front panel
attaches to the hook & loop strip on the top edge of the top bar.
6.
The curtains also have hook & loop strips running along the sides. These strips attach to the back edges of
the track units, and inside the front edges of the track units. Press these hook & loop strips firmly to secure
the curtain.

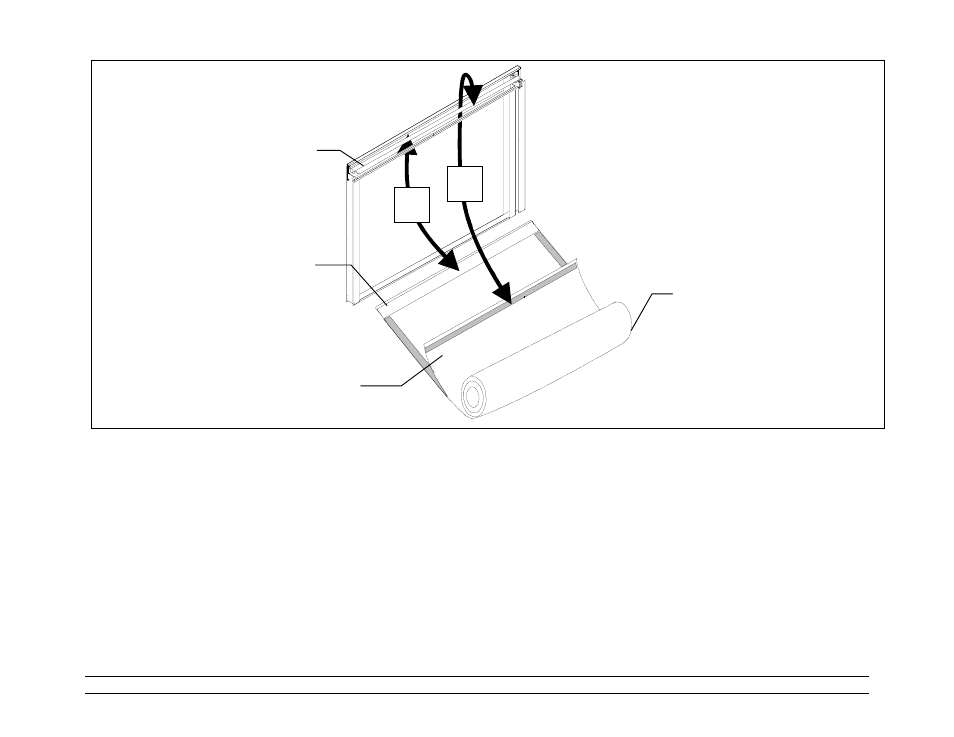

Attaching Curtain
Drive pipe
Back panel
(Hook & loop strip
located on reverse side
of curtain).
Center panel
Front panel hook & loop strip
is located at end of curtain
roll.
a. Back panel hook & loop strip is located
on reverse side of curtain. This hook &
loop strip attaches to hook & loop strip on
the back plate. Bring curtain underneath
the top bar and drive pipe to attach.
b. Hook & loop strip on center panel
attaches to the hook & loop strip on the
drive pipe. Bring the center panel
underneath and over the drive pipe to
attach.
a
b
