Part No. 4801-5093 Rev 4-08 Unitized System Page 20

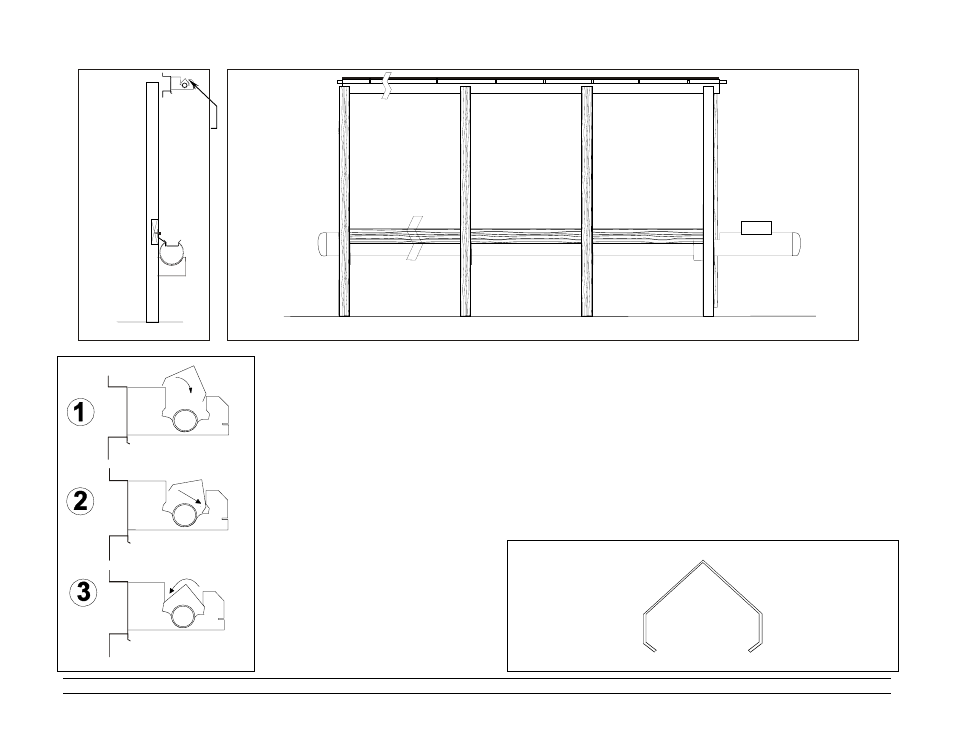

Install Splash Guards
1. Insert splash guard into support bracket as shown in diagram at
left.
2. Press front edge of splash guard against support bracket as
shown.
3. Use both hands to grip splash guard near midpoint. Squeeze and
rotate splash guard downward until splash guard locks into
position in the support bracket.
4. Add a splash guard splice to each joint where two splash guards
abut. Splash guard splice clips over joint. See diagram below.
Splash
guard
Front View
Splash Guard
Splice
Insert splash guard into
support bracket.
Press front of splash guard
into bracket as shown.
Squeeze and twist splash guard
downward to snap splash guard
into place.
Side View
