Watlow Addendum to EZwarePlus User Manual
Page 48

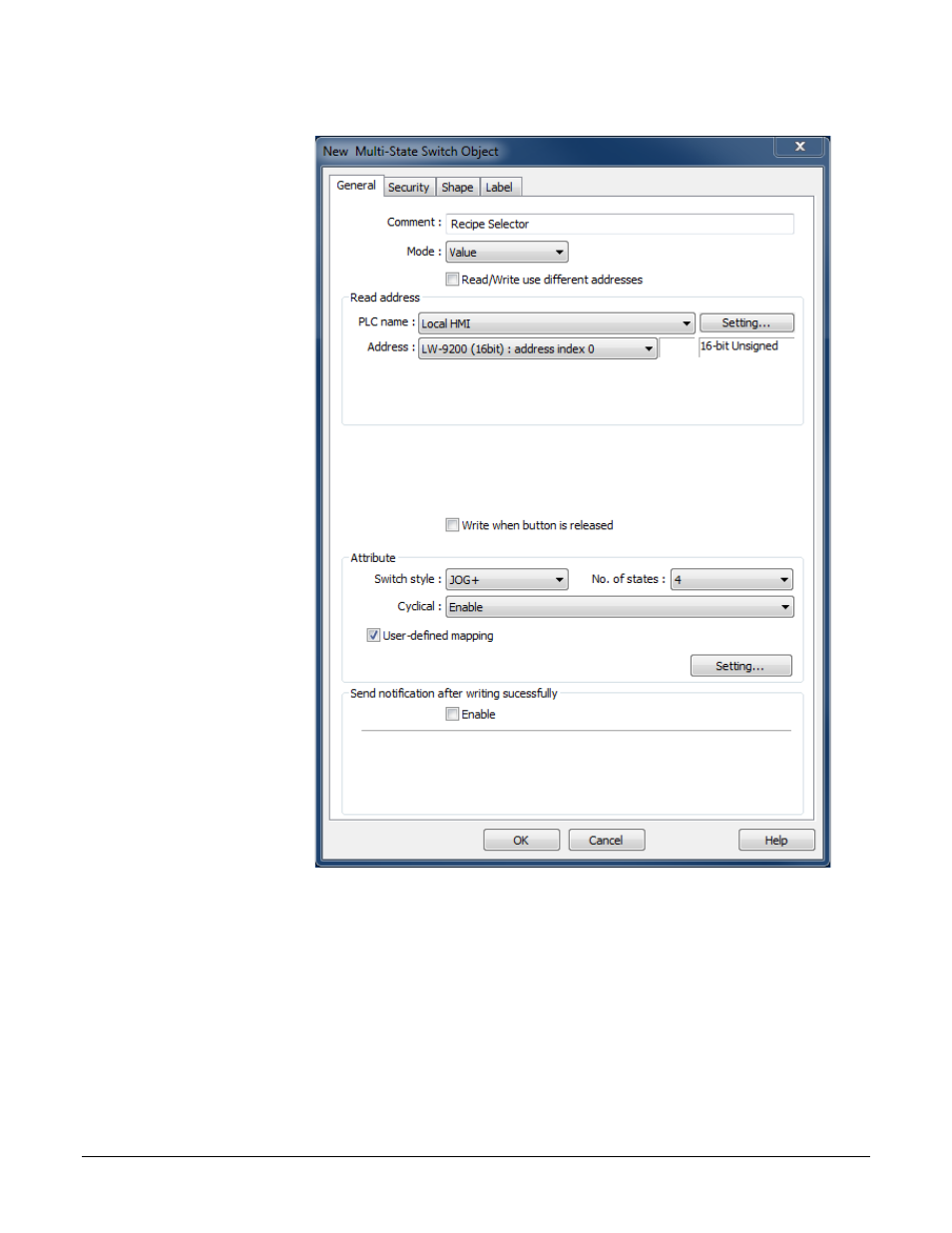

To select the recipe to save to or load from create a multi-state switch to select the recipe as
follows:
1) On the Objects
menu point to
Buttons and
choose Multi-
State Switch.
2) In Description
type “Recipe
Selector”.
3) Click Read
address Setting…
4) For PLC name
choose the OIT
(Local HMI by
default).
5) Check System tag.
6) For Device type
choose LW-9200
(16bit) : address
index 0.
7) Click OK to close
the Address
dialog.
8) Click Write
address Setting…
9) For PLC name
choose the OIT
(Local HMI by
default).
10) Check System tag.
(069)
11) For Device type choose LW-9200 (16bit) : address index 0.
12) Click OK to close the Address dialog.
13) For Switch style choose JOG+.
14) For No. of states choose the number of recipes you want to store.
15) For Cyclical choose Enable.
16) Check User-defined mapping.
