Watlow Addendum to EZwarePlus User Manual
Page 38

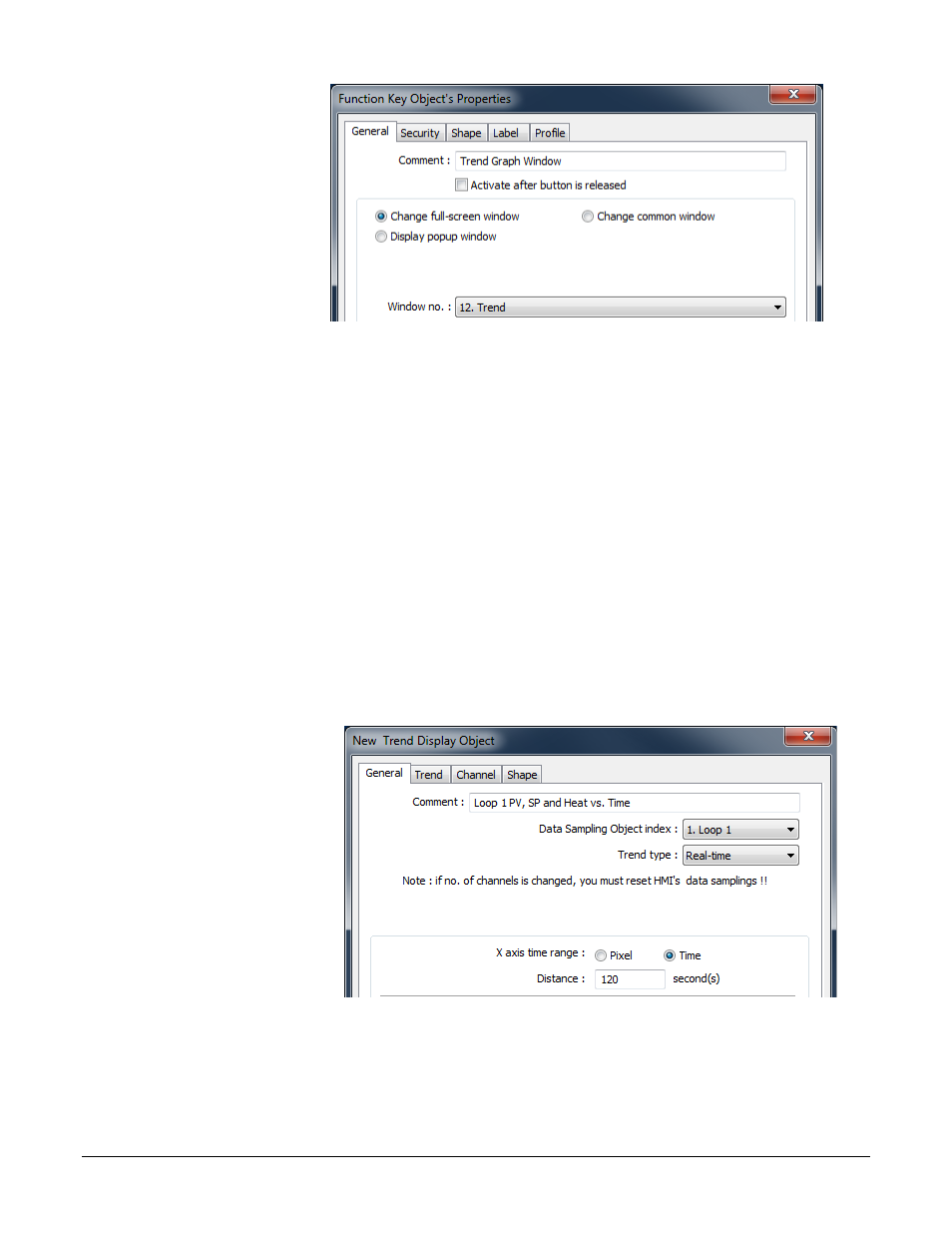

7) Edit the Comment to
read Trend Graph
Window.
8) Choose Change full-
screen window.
9) For Window no.
choose 12. Trend.
(066)
10) Click the Label tab.
11) Edit the Content to read Trend.
12) Click OK to close the Function Key Object’s Properties window.
13) If necessary, select the function key by clicking it.
14) From the Edit menu, choose Copy.
15) Select window 12 Trend.
16) From the Edit menu, choose Paste.
17) Position the button centered at the bottom of the screen.
18) Edit the new button’s properties so that it changes to full-screen window 10 Initial and is
labeled “Back”.
To create a trend graph:
1) On the Objects menu
point to Data Logging
and choose Trend
Display.
2) In Comment type a
description of the trend
such as “Loop 1 PV,
SP and Heat vs. Time”.
3) For Data Sampling
Object index choose
the data sampling
object you previously
configured.
(051)
Silver Series EM OIT
38
