Watlow Addendum to EZwarePlus User Manual
Page 17

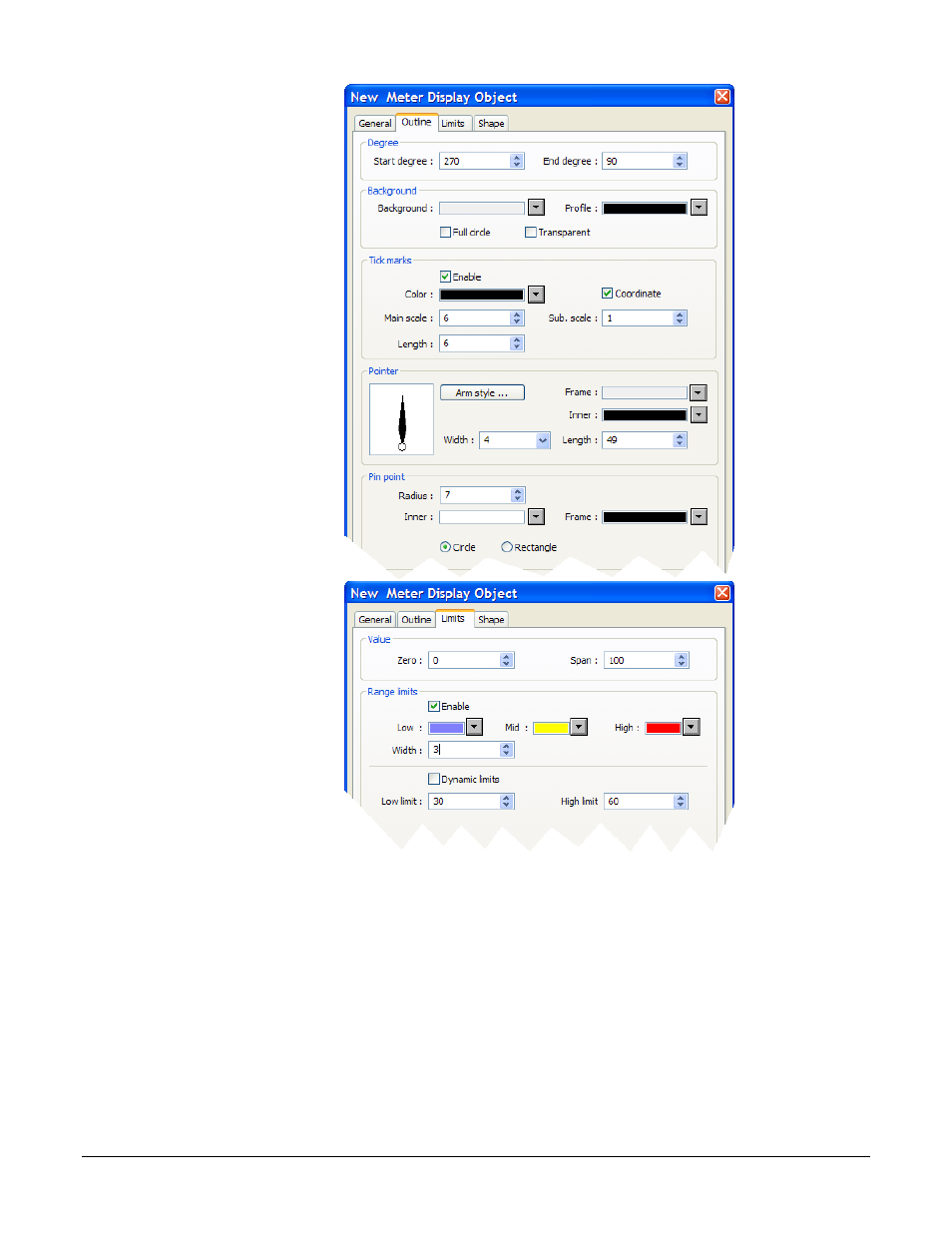

10) Click the Outline tab.
11) In Degree set Start
degree to 270.
12) In Degree set End
degree to 90.
13) In Background
uncheck Full circle.
14) In Tick marks check
Enable.
15) For Tick marks
Color, select black.
16) In Tick marks set
Main scale to 6.
17) In Tick marks set Sub
scale to 1.
18) In Tick marks set
Length to 6.
(010)
19) Click the Limits tab.
20) Set Value Zero to 0.
21) Set Value Span to
100.
22) Check Range limits
Enable.
23) Set Width to 3.
(011)
24) Click OK.
25) Move the cursor with the outline of the meter to position it and click to place the meter in
Window_11.
26) Resize the meter with the corner handles to make it smaller, if necessary
Silver Series EM OIT
17
Watlow Addendum
