Add an Option List for Control Mode

This example assumes you have created a window in a project that communicates with a Watlow
Controller and that window is open in EZwarePlus.

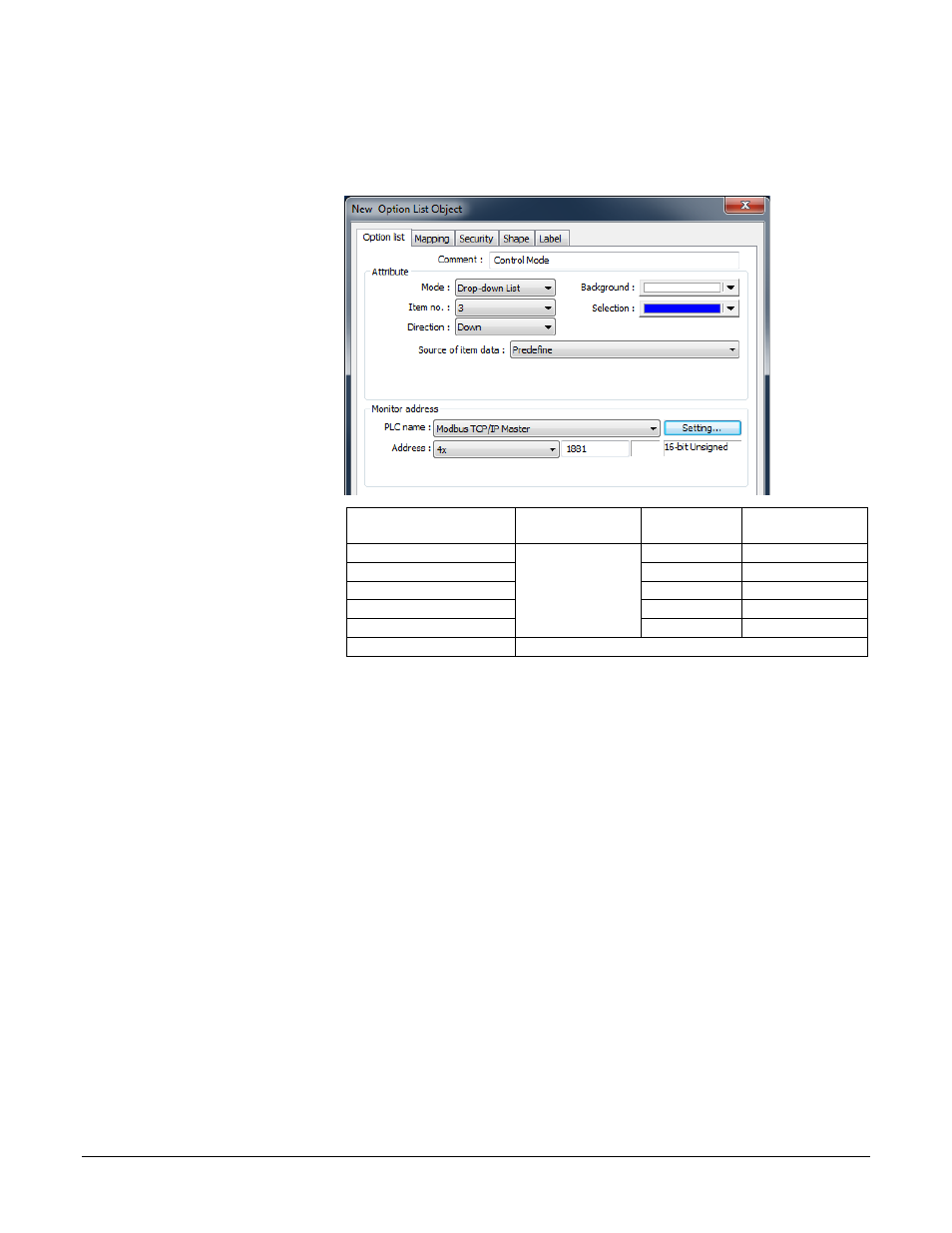

1) On the Objects menu,

click Button then
choose Option List.

2) Click the General tab.

3) In Comment type

Control Mode.

4) Set Mode to Drop-

down list.

5) Set Item No. to 3.

6) In the Monitor

address group:

• For PLC name choose

Modbus RTU Master or
Modbus TCP/IP
Master
.

• Click Setting…
• For Device type choose

4x.

• In Address enter the

address of the Control
Mode. See the table.

• Select the data type in

the field below the
Address field.

• Click OK to close the

Address dialog

7) Click the Mapping

tab.

(019)

For this controller…

This
parameter…

Enter this
Address*…

Choose this
Data Type…

RMCxxxx-xxxxxxx

Control Mode

2221

16-bit Unsigned

RMHx-xxxx-x1xx

4101

16-bit Unsigned

PMxxxxx-xxxxxxx

1881

16-bit Unsigned

STxx-xxMx-xxxx

222

16-bit Unsigned

ST via RUI Gateway

1881

16-bit Unsigned

Other Controllers

Consult the controller manual.

*These addresses have already been changed to the absolute form required
for EZwarePlus by adding 1 to the value listed in the Watlow manual. Enter
them as listed.
