Watlow Addendum to EZwarePlus User Manual
Page 19

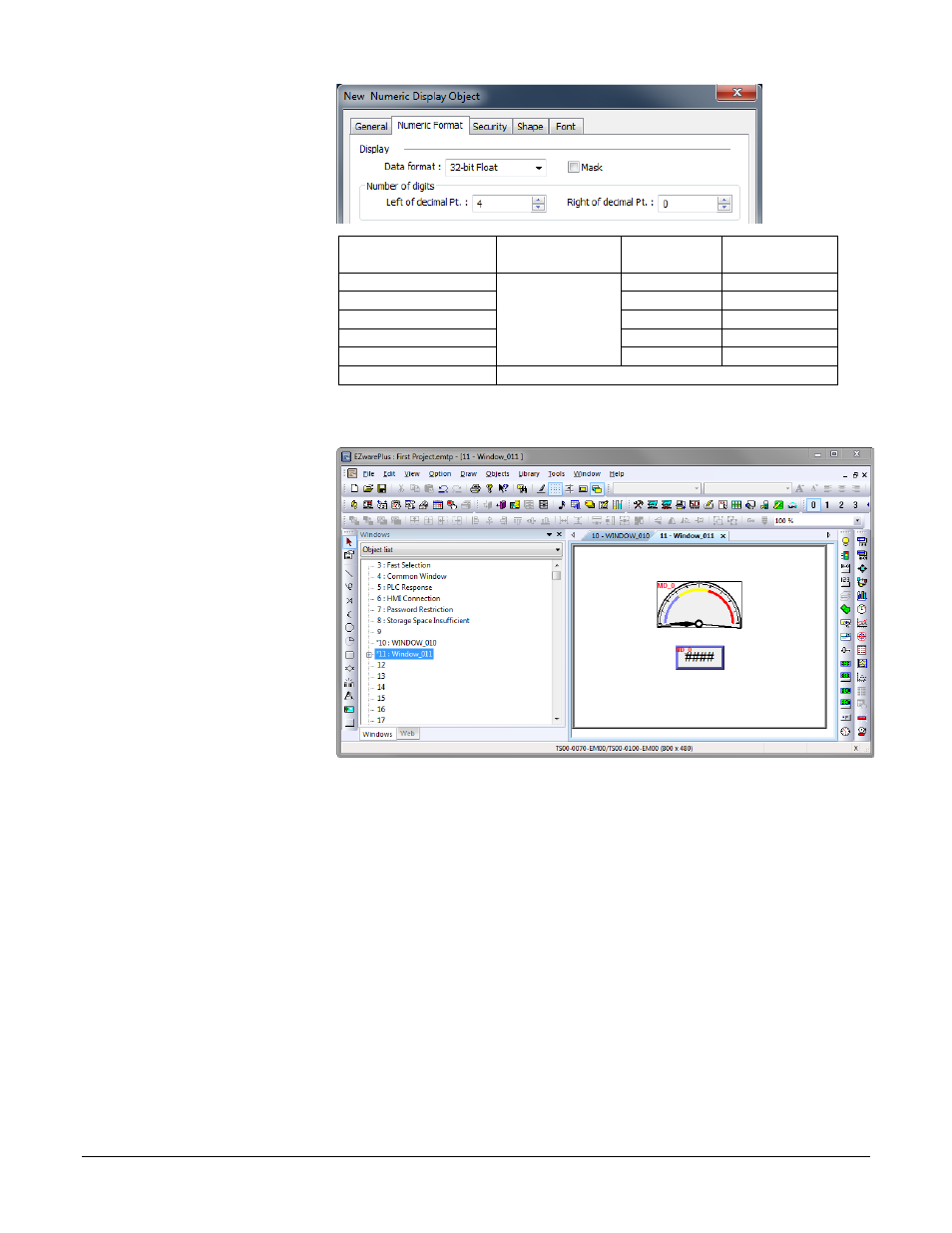

6) On the Numeric
Format tab.
7) In Data format set
the data type. See the
table.
8) On the Font tab set
Align to Right.
9) Click OK.
(013b)
For this
controller…
This
parameter…
Enter this
Address*…
Choose this
Data Type…
RMCxxxx-xxxxxxx
Closed Loop
Working/Active
Set Point
(Read Only)
2513
32-bit Float
RMHx-xxxx-x1xx
5233
32-bit Float
PMxxxxx-xxxxxxx
2173
32-bit Float
STxx-xxMx-xxxx
204
32-bit Float
ST via RUI Gateway
2173
32-bit Float
Other Controllers
Consult the controller manual.
*These addresses have already been changed to the absolute form required
for EZwarePlus by adding 1 to the value listed in the Watlow manual. Enter
them as listed.
10) Move the cursor with
the outline to position
the display field and
click to place it.
11) Adjust the size of the
field as needed.
12) From the File menu
choose Save.
(014)
