Create a Graph
This example assumes you have a project with at least one controller and that you have previously
configured a time-based data sampling object.
To create and open a window to use for the trend.

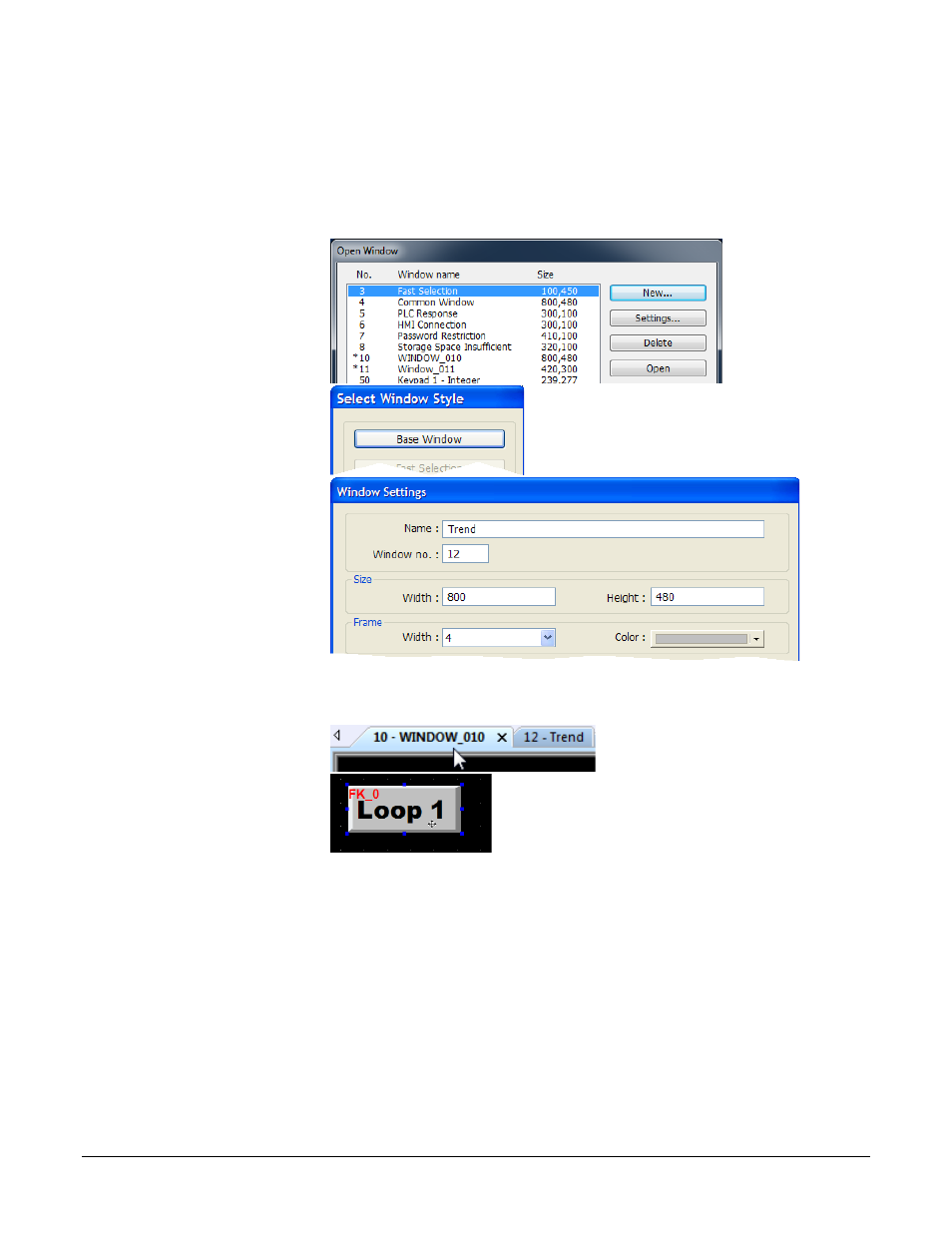

1) From the Window
menu, choose Open
Window.
2) Click New…
(056)
3) Click Base Window.
(007)
4) In Name type Trend.
5) Click OK.
6) In the Window list
select Trend.
7) Click Open.
(057)
To create buttons to open the Trend window and return to the first window:
1) Select window 10.
(064)
2) Select the function
key on that screen by
clicking it once.
(065)
3) From the Edit menu, choose Copy.
4) From the Edit menu, choose Paste.
5) Place the copy next to the original.
6) Double-click the copy to open the Function Key Object’s Properties window.
