Watlow Addendum to EZwarePlus User Manual
Page 31

To download the project via a USB drive to an OIT:
1) Connect at USB drive to the PC

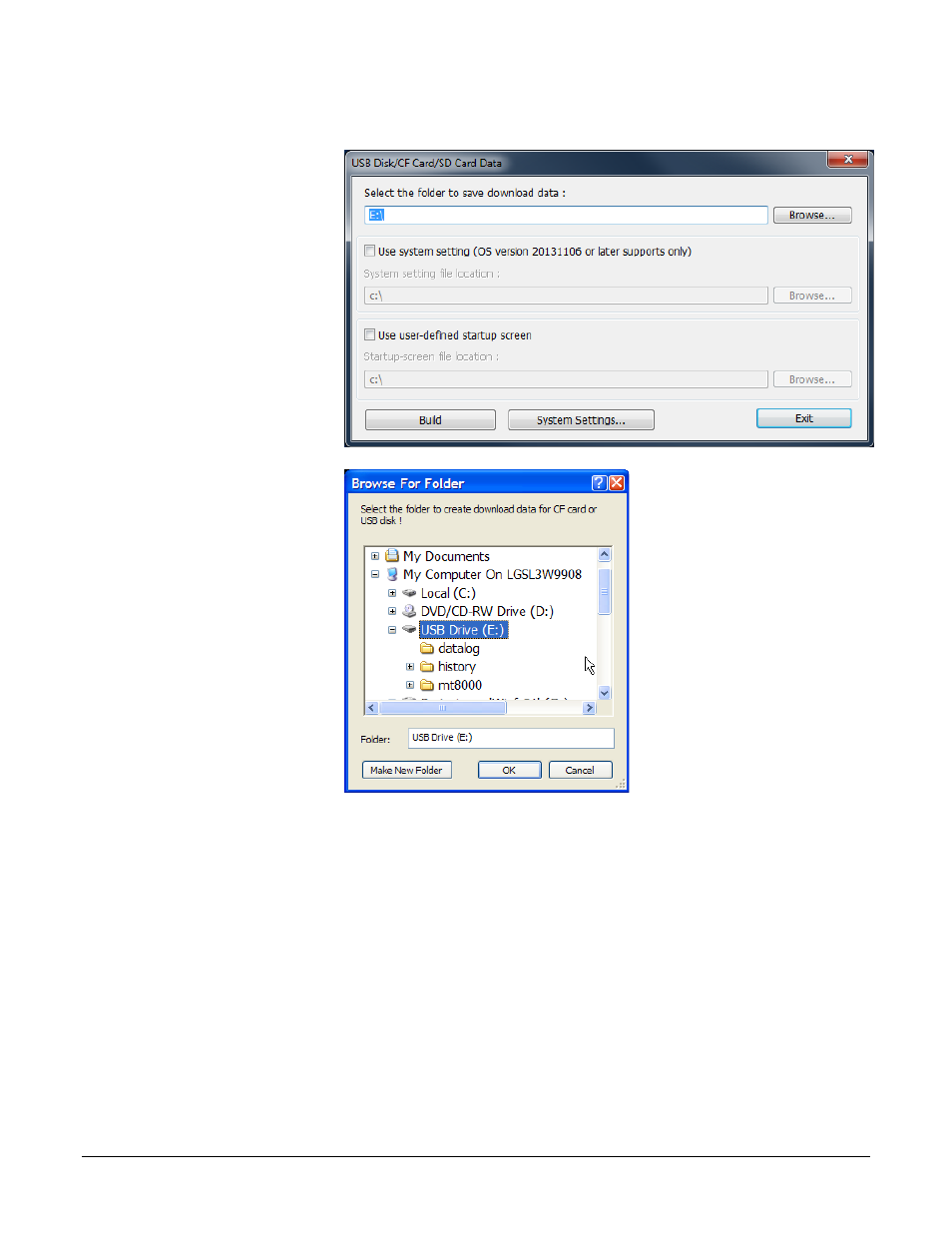

2) From the Tools menu
choose Build Data for
USB Disk or SD Card
Download…
3) Click Browse…
(038)
4) Locate and select the
USB drive.
Note: Do not select a sub
directory of the USB drive.
Select the root.
5) Click OK to close the
Browse For Folder
dialog.
(039)
6) Click Build.
7) When the files are transferred successfully, click OK.
8) Click Exit to close the USB Disk/CF Card/SD Card Data dialog.
9) Remove the USB drive from the PC.
To download the from the USB drive to the OIT:
1) Connect the USB drive to the OIT.
2) When the download/Upload screen appears on the OIT click Download.
Note: You only have a few seconds to do this before the screen times out. If you miss it, disconnect the
USB drive and connect it again.
Silver Series EM OIT
31
