For part numbers like…

with…

For PLC type choose…

For PLC I/F choose…

PMxxxxx-2xxxxxx
EZKx-2xxx-xxxx
RMAx-x2xx-xxxx

Modbus RTU

Modbus RTU Master

RS-232 or RS-485 2W*

PMxxxxx-3xxxxxx
EZKx-3xxx-xxxx
RMAx-x3xx-xxxx

Modbus TCP

Modbus TCP/IP Master

Ethernet

Other Watlow Controllers

Modbus RTU

Modbus RTU Master

RS-232 or RS-485 2W*

*Both 232 and 485 are available; choose the one to which you have connected the OIT.


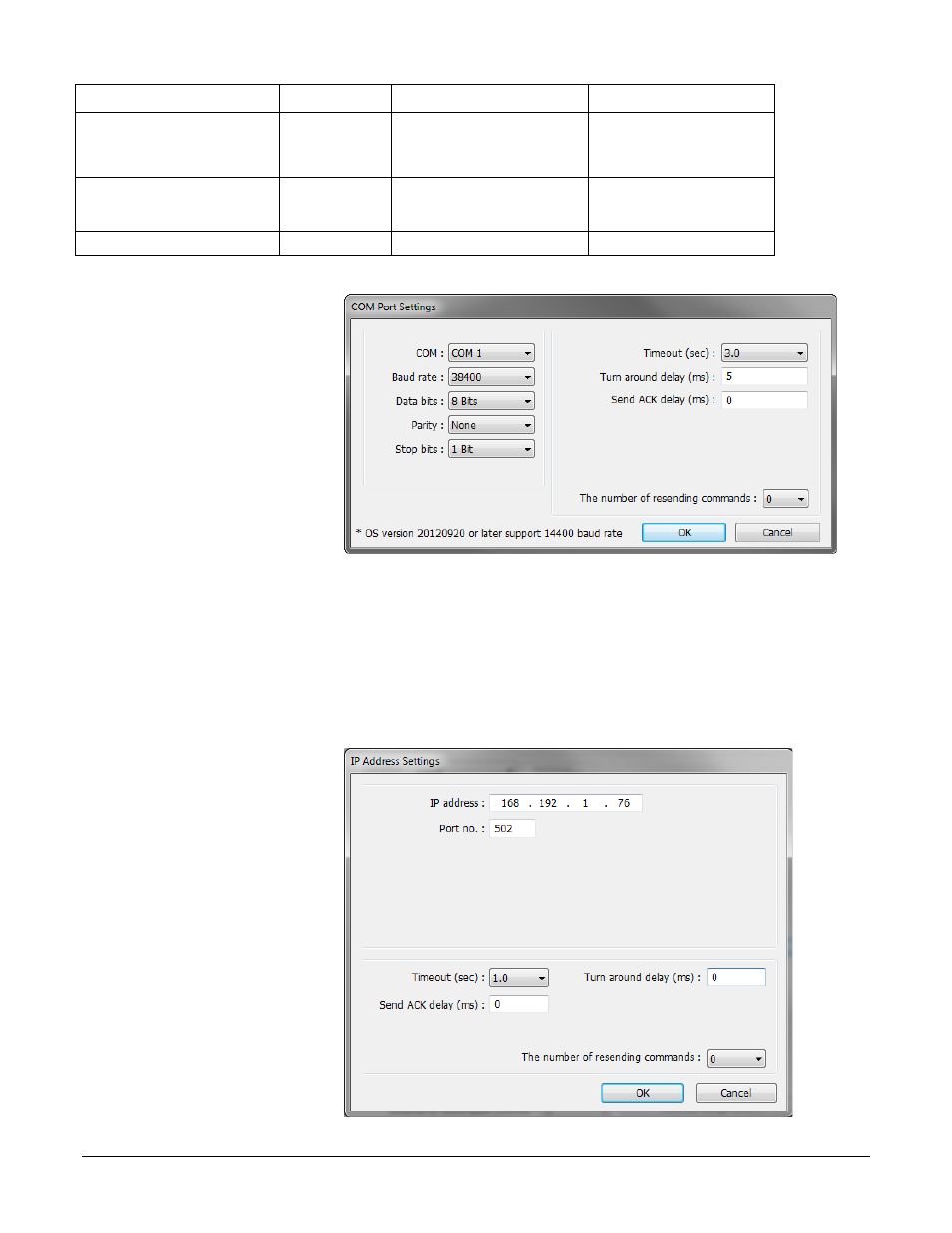

11) For the Modbus RTU

Master…

• For COM, choose the

communications port to
which you have
connected the
controller. Typically
this is COM 1.

• For Baud rate, choose

the rate that is set in the
controller.

(004)

• For Data bits, choose 8 Bits.
• For Parity, choose None.
• For Stop bits, choose 1 Bit.
• For multiple controllers on the same port, for Turn around delay (ms), enter 15 and for Send

ACK delay (ms) enter 15.

• Click OK.

12) For the Modbus

TCP/IP Master…

• For IP address, enter

the IP address of the
controller.

• Click OK.

13) Click OK to close the

Device Properties
dialog.

(005)
