ECW-281B-D2550 Embedded System
Page 40
3.8.7 VGA Connector
CN Type: 15-pin DB-15 female
CN Location: See Figure 1-3
CN Pinouts: See Figure 3-33 and Table 3-10
The VGA connector connects to a monitor that accepts VGA video input.
Step 1: Locate the female DB-15 connector . The location of the female DB-15
connector is shown in Figure 1-3.
Step 2: Align the VGA connector . Align the male DB-15 connector on the VGA screen
cable with the female DB-15 connector on the external peripheral interface.
Step 3: Insert the VGA connector . Once the connectors are properly aligned with,
insert the male connector from the VGA screen cable into the female connector
on the ECW-281B-D2550. See Figure 3-32.

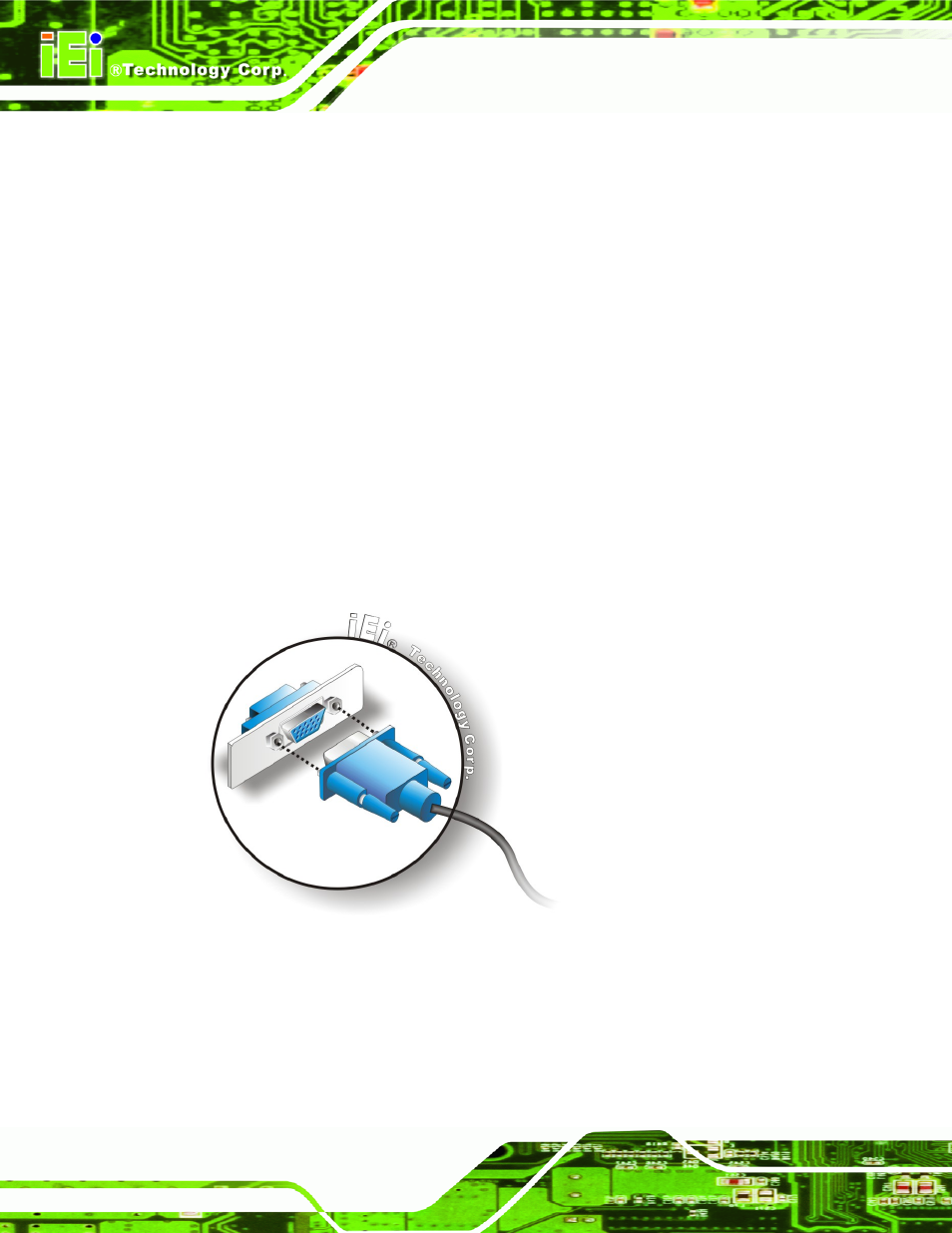

Figure 3-32: VGA Connector
Step 4: Secure the connector . Secure the DB-15 VGA connector from the VGA
monitor to the external interface by tightening the two retention screws on either
side of the connector.
