ECW-281B-D2550 Embedded System
Page 17
Step 1: Remove the bottom surface retention screws. The bottom surface is secured to
the chassis with ten retention screws (
765
Figure 3-1 ). All ten screws must be
removed.

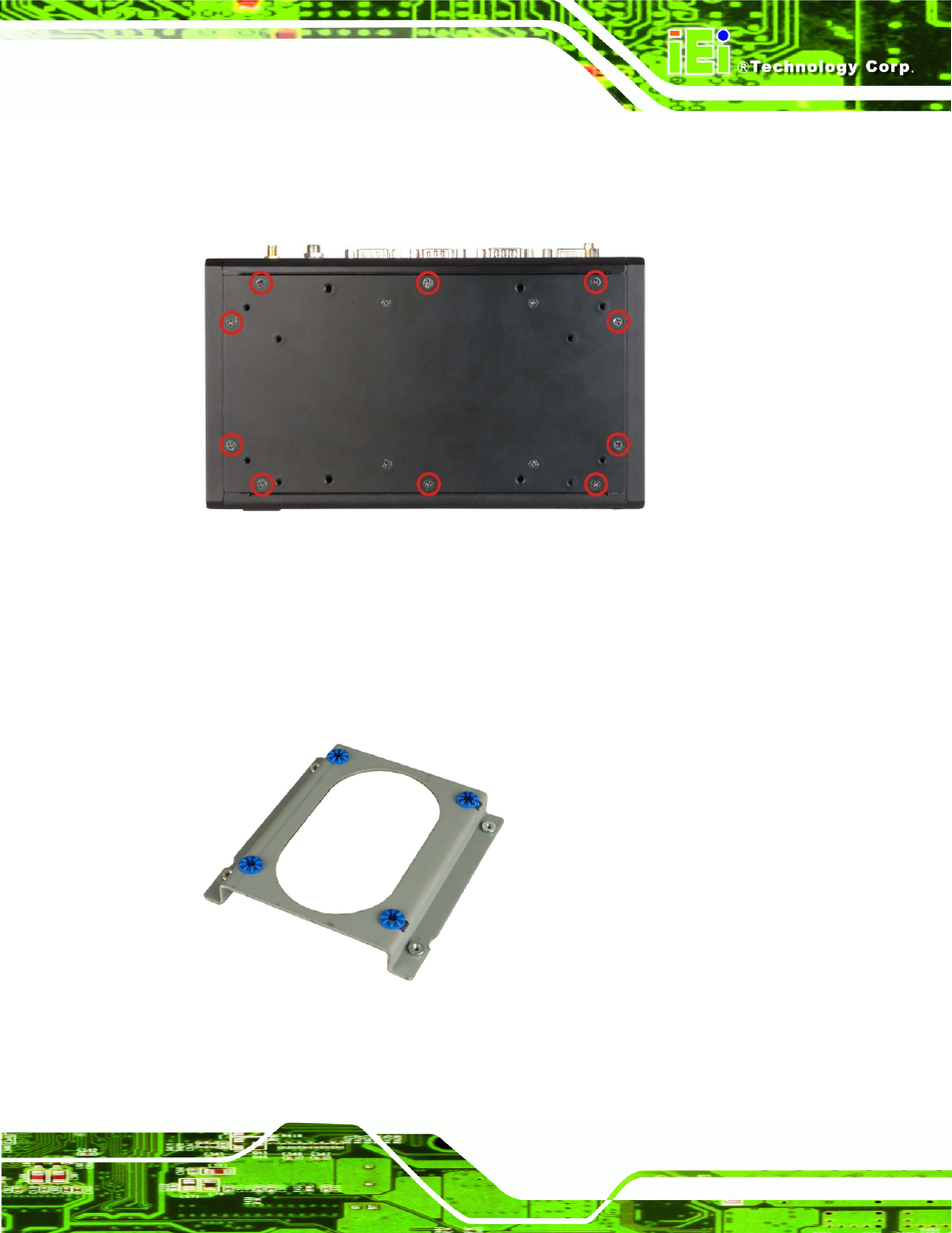

Figure 3-1: Bottom Surface Retention Screws
Step 2: Gently remove the bottom surface from the ECW-281B-D2550. Step 0:
3.3 Hard Drive Installation
A 2.5” SATA hard drive can be installed into the hard drive bracket attached on the inside
of the bottom panel (
765
Figure 3-2 ).
Figure 3-2: Hard Drive Bracket
To install a hard drive into the system, please follow the steps below.
