ECW-281B-D2550 Embedded System
Page 27
3.7 Mounting the System
3.7.1 Mounting the System with Mounting Brackets
To mount the embedded system onto a wall or some other surface using the two mounting
brackets, please follow the steps below.
Step 1: Turn the embedded system over.
Step 2: Align the two retention screw holes in each bracket with the corresponding
retention screw holes on the sides of the bottom surface.

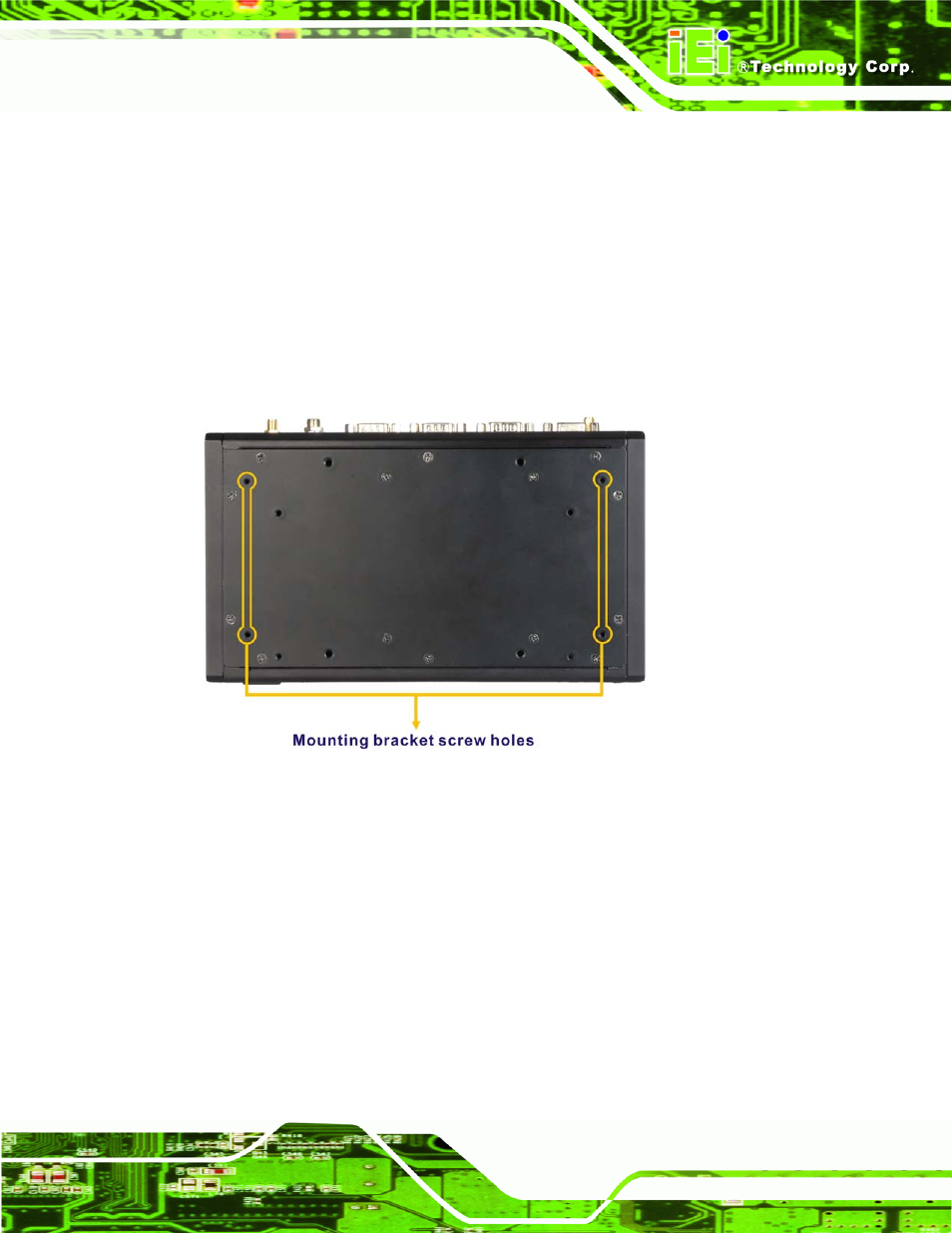

Figure 3-16: Mounting Bracket Screw Holes
Step 3: Secure the brackets to the system by inserting two retention screws into each
bracket.
Step 4: Drill holes in the intended installation surface.
Step 5: Align the mounting holes in the sides of the mounting brackets with the predrilled
holes in the mounting surface.
Step 6: Insert four retention screws, two in each bracket, to secure the system to the
wall. Step 0:
