Page 49

ECW-281B-D2550 Embedded System
Page 35
The RJ-45 Ethernet connector has two status LEDs, one green and one yellow. The green
LED indicates activity on the port and the yellow LED indicates the port is linked. See
Activity/Link LED
Speed LED
STATUS
DESCRIPTION
STATUS
DESCRIPTION
Off
No link
Off
10 Mbps connection
Yellow
Linked
Green
100 Mbps connection
Blinking TX/RX
activity
Orange
1 Gbps connection
Table 3-6: RJ-45 Ethernet Connector LEDs
3.8.3 Power Terminal Block (WD Models Only)
CN Type:
3-pin terminal block
CN Location:
CN Pinouts:
The terminal block pinouts are shown in Figure 3-27. The chassis ground is connected to
the system internally. The cable ground is connected to the ground pin on the input power
connector of the power module.

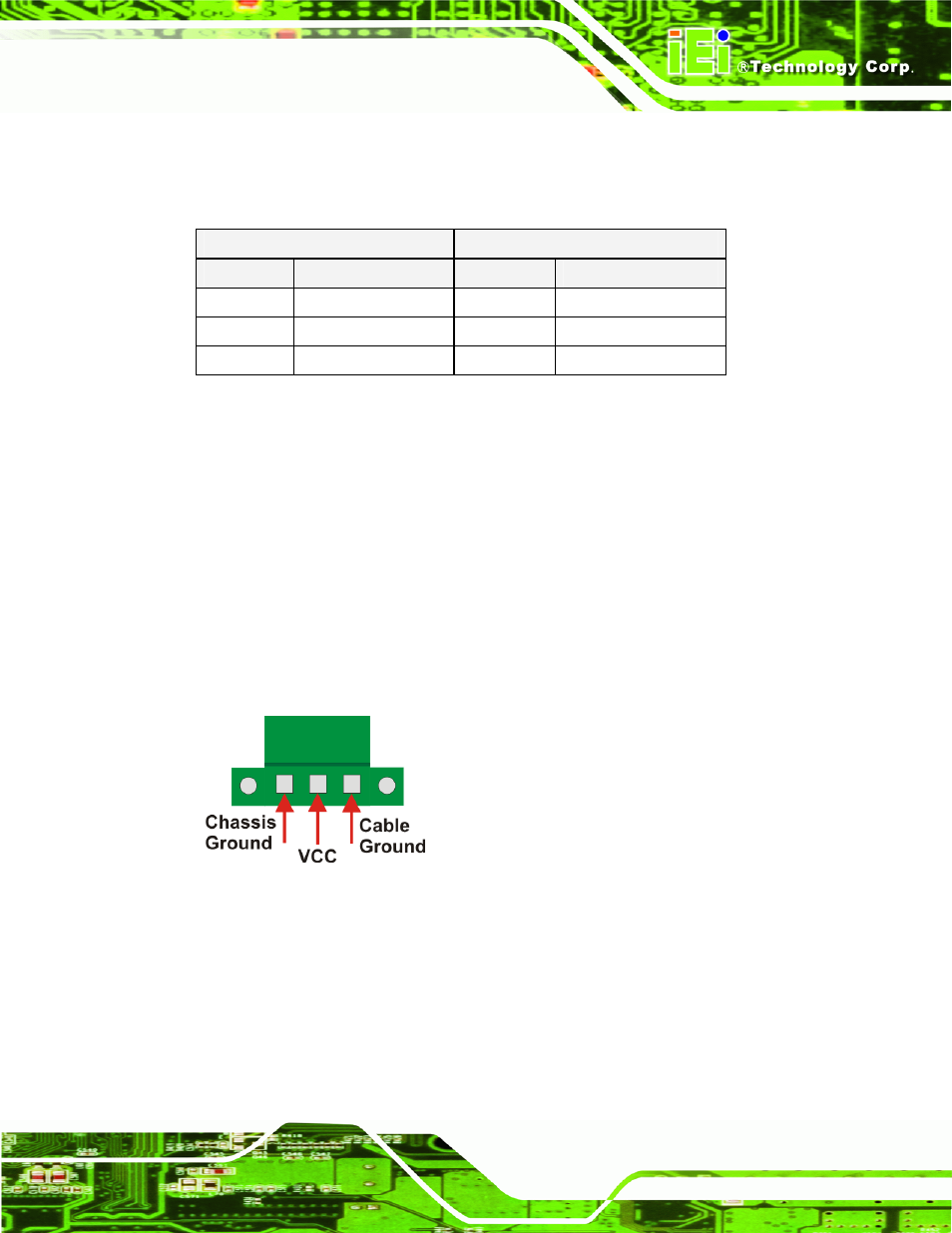

Figure 3-27: Power Terminal Block Pinouts
