ECW-281B-D2550 Embedded System

Page 23

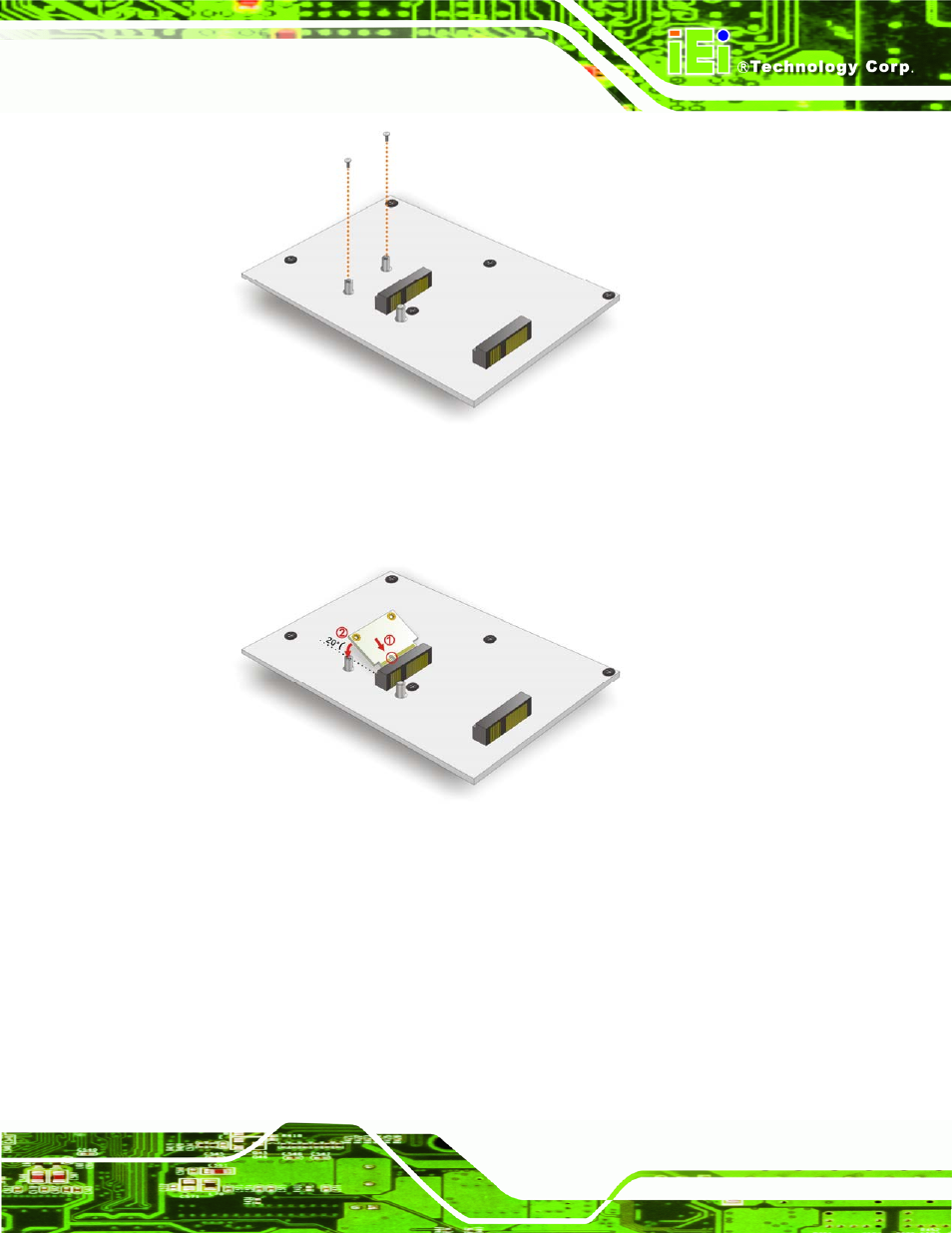

Figure 3-11: Remove the Retention Screws for the Half-size PCIe Mini Card

Step 4:

Line up the notch on the PCIe Mini card with the notch on the connector. Slide

the card into the socket at an angle of about 20º (Figure 3-12).

Figure 3-12: Insert the Half-size PCIe Mini Card into the Socket at an Angle

Step 5:

Secure the half-size PCIe Mini card with the two retention screws previously
