ECW-281B-D2550 Embedded System

Page 18

Step 1:

Remove the bottom surface. See Section

765

3.2

Step 2:

Remove the hard drive bracket from the bottom surface by removing the four

retention screws that secure the bracket to the bottom surface. (

765

Figure 3-3

)

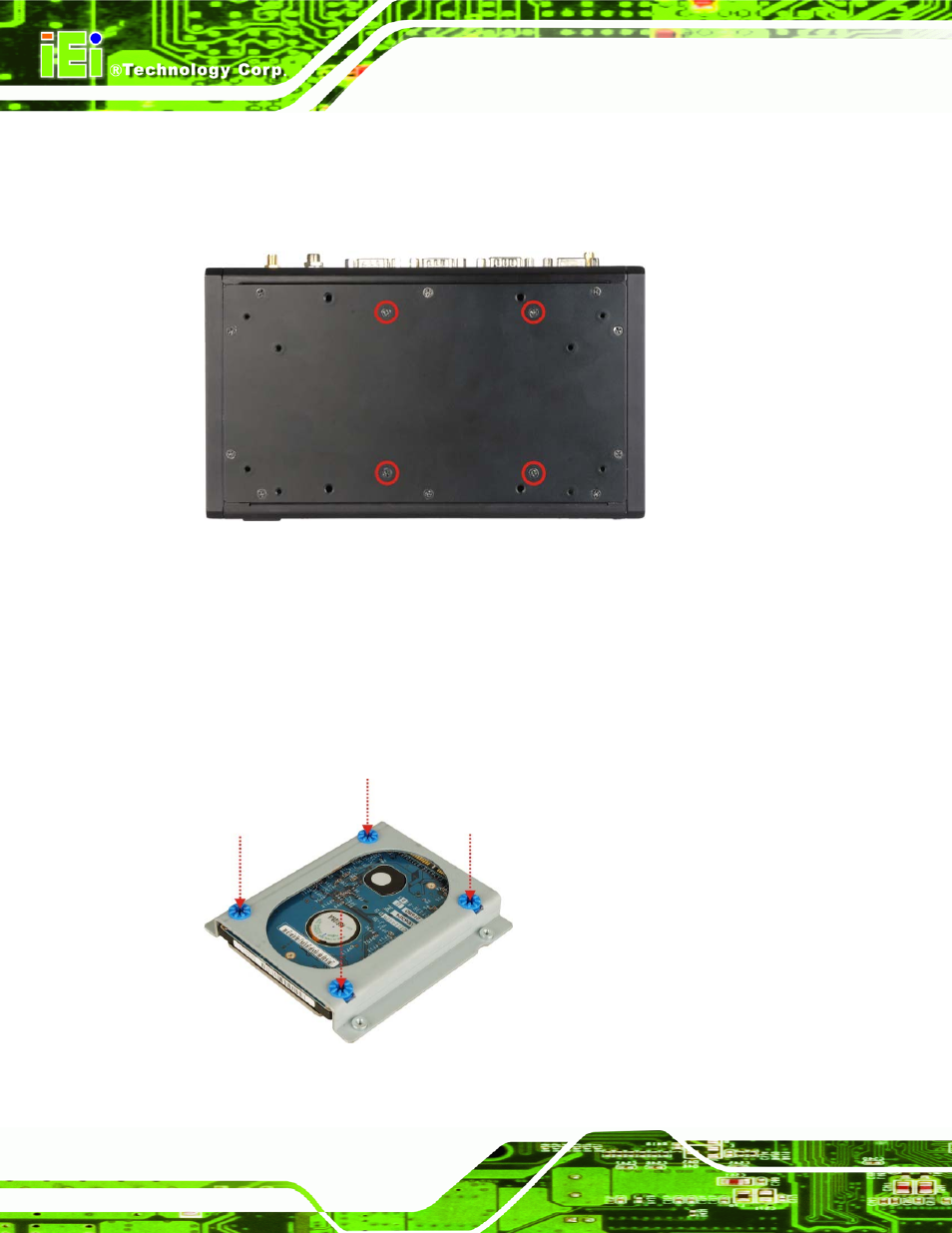

Figure 3-3: HDD Bracket Retention Screws

Step 3:

Place the HDD into the bracket.

Step 4:

Align the retention screw holes in the HDD with those in the bottom of the

bracket.

Step 5:

Secure the HDD with the bracket by inserting four retention screws into the

bottom of the bracket (

765

Figure 3-4

Figure 3-4: HDD Retention Screws
