ECW-281B-D2550 Embedded System
Page 21

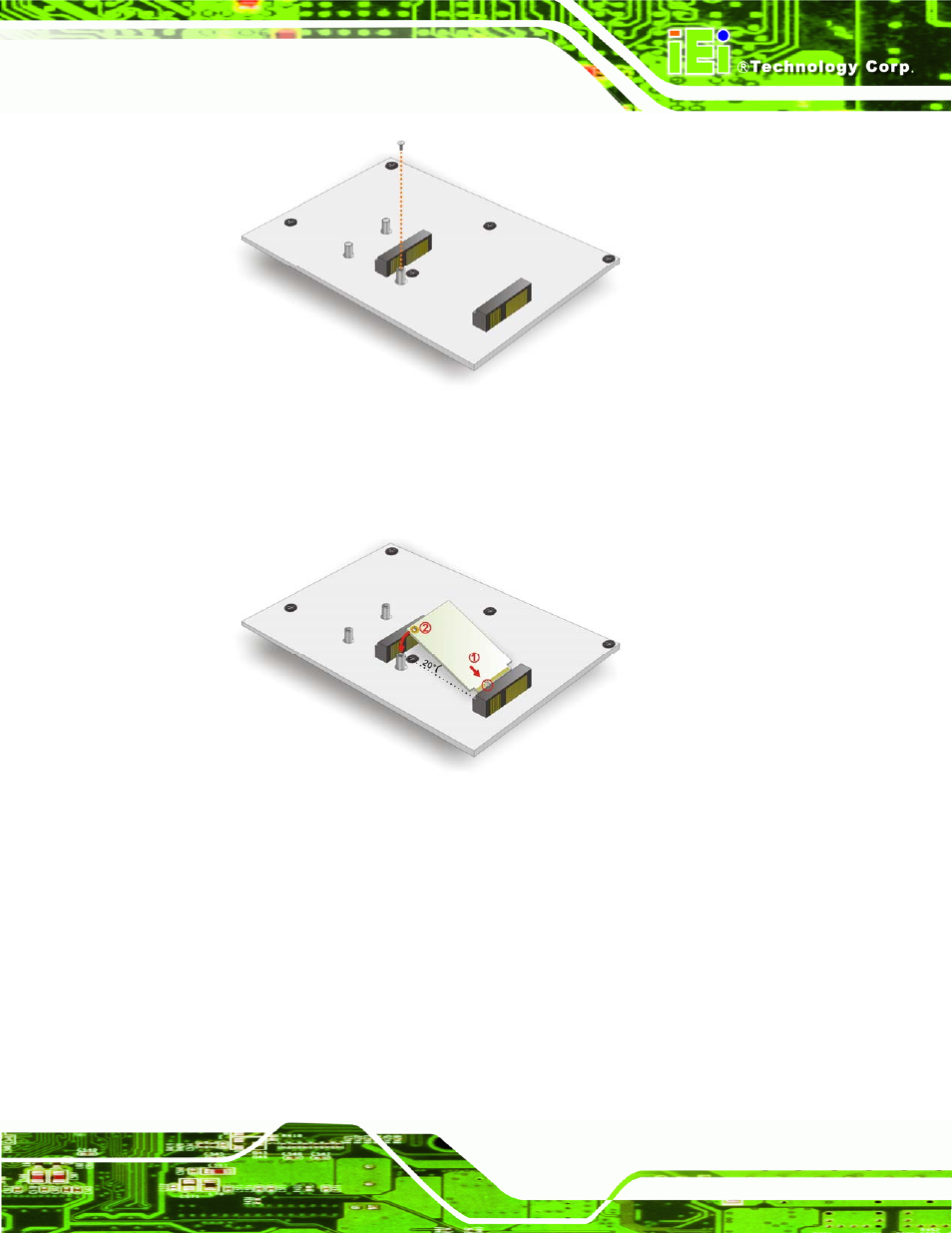

Figure 3-7: Remove the Retention Screw for the Full-size PCIe Mini Card
Step 4: Line up the notch on the PCIe Mini card with the notch on the connector. Slide
the card into the socket at an angle of about 20º (Figure 3-8).
Figure 3-8: Insert the Full-size PCIe Mini Card into the Socket at an Angle
Step 5: Secure the full-size PCIe Mini card with the retention screw previously removed
(Figure 3-9).
