ECW-281B-D2550 Embedded System
Page 31

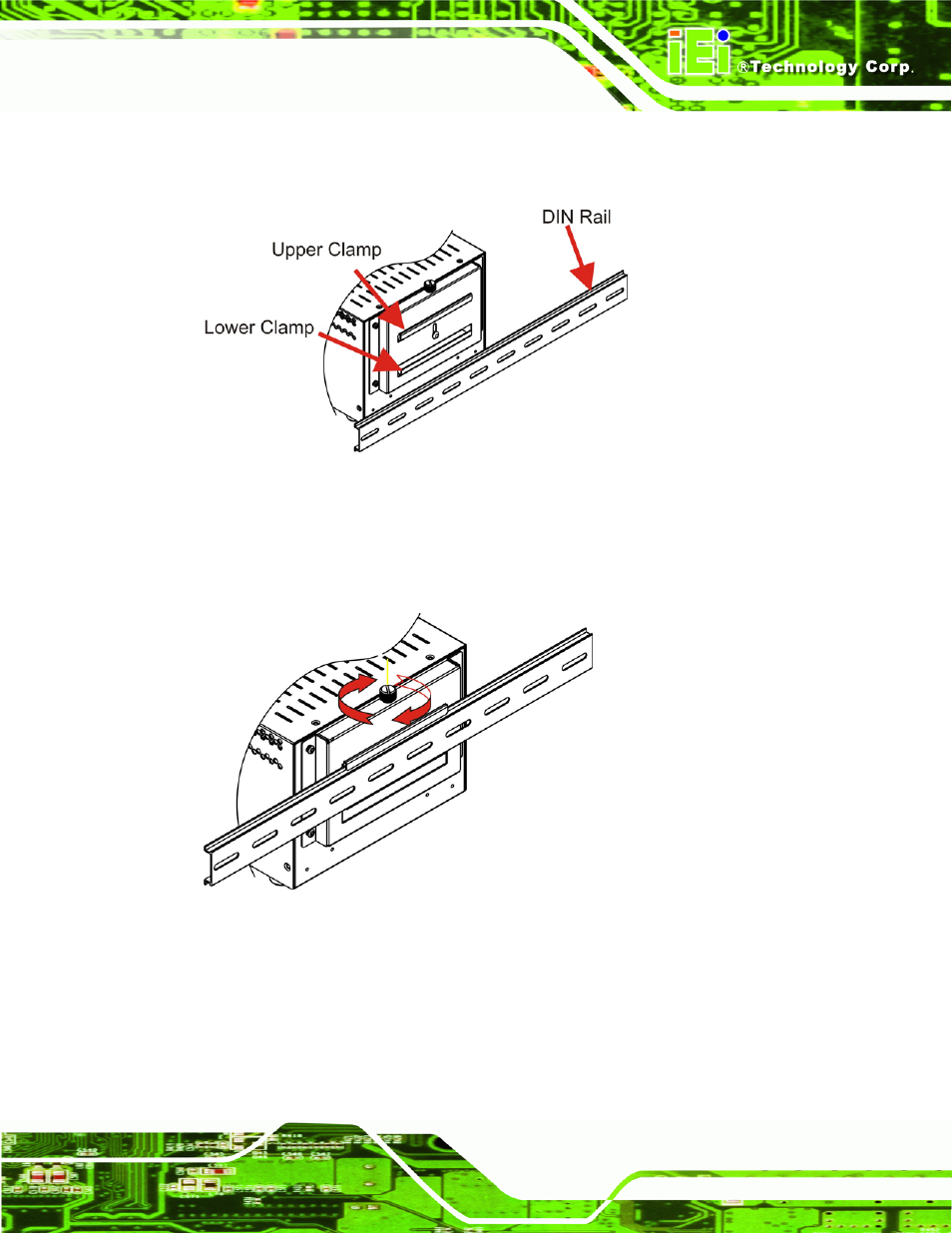

Step 3: Place the DIN rail flush against the back of the mounting bracket making sure
the edges of the rail are between the upper and lower clamps (Figure 3-21).
Figure 3-21: Mounting the DIN Rail
Step 4: Secure the DIN rail to the mounting bracket by turning the top screw clockwise.
This draws the lower clamp up and secures the embedded system to the DIN
rail (
766
Figure 3-22 ).
Figure 3-22: Secure the Assembly to the DIN Rail
