ECW-281B-D2550 Embedded System
Page 117

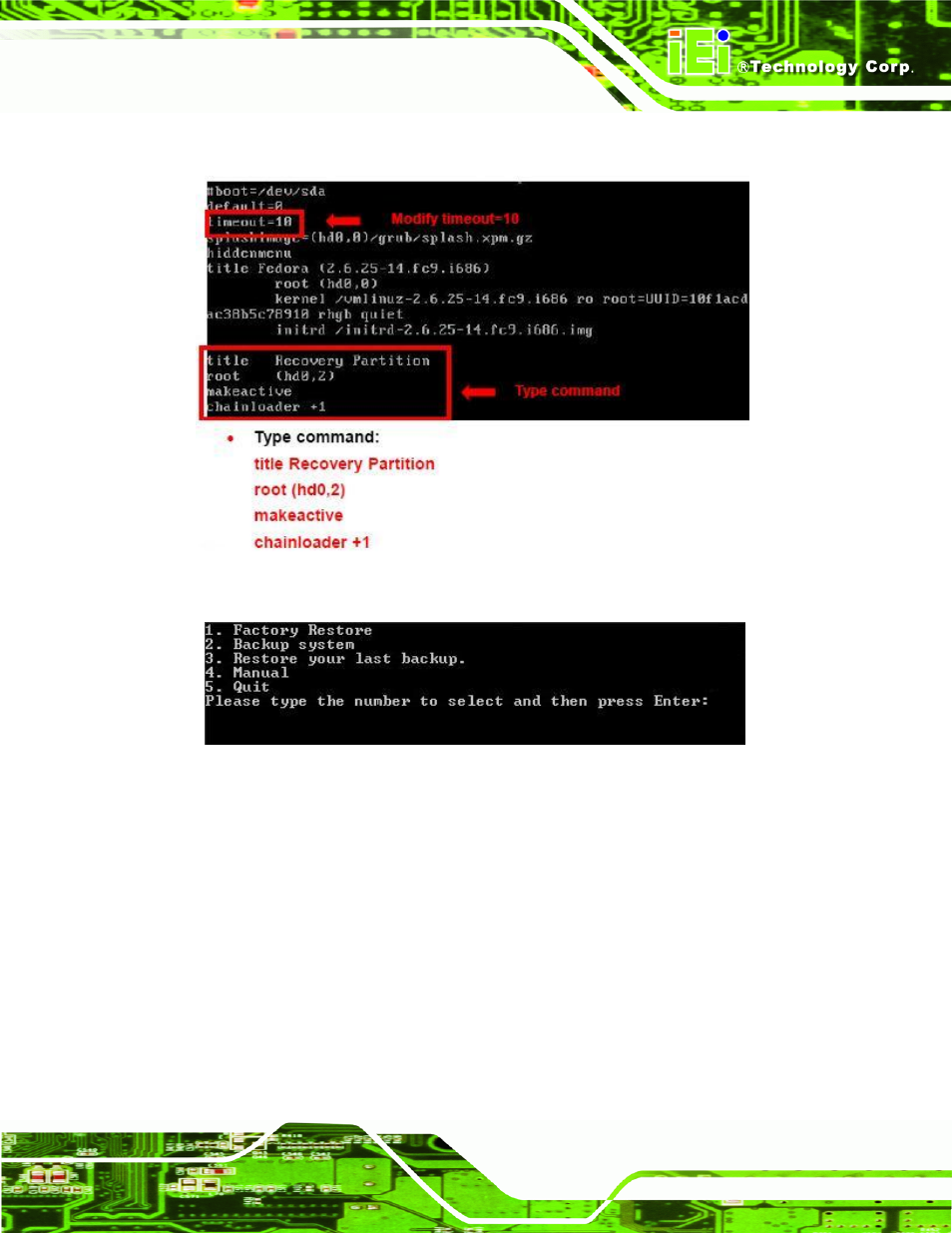

Step 6: Modify the menu.lst as shown below.
Step 7: The recovery tool menu appears. (
76
Figure A-34 )
Figure A-34: Recovery Tool Menu
Step 8: Create a factory default image . Follow Step 2 ~ Step 12 described in Section
76
A.2.5 to create a factory default image.
A.5 Recovery Tool Functions
After completing the initial setup procedures as described above, users can access the
recovery tool by pressing <F3> while booting up the system. However, if the setup
procedure in Section A.3 has been completed and the auto recovery function is enabled,
the system will automatically restore from the factory default image without pressing the
F3 key. The recovery tool main menu is shown below.
