The COM 3 Function Select jumper sets the communication protocol used by the third
serial communications port (COM 3) as RS-232, RS-422 or RS-485. The COM 3 Function
Select settings are shown in
795H
Table 5-5.
COM 3 Function Select Description
Short 1-2 RS-232 Default
Short 3-4 RS-422
Short 5-6 RS-485
Table 5-5: COM 3 Function Select Jumper Settings
The COM 3 Function Select jumper location is shown in
796H
Figure 5-7.

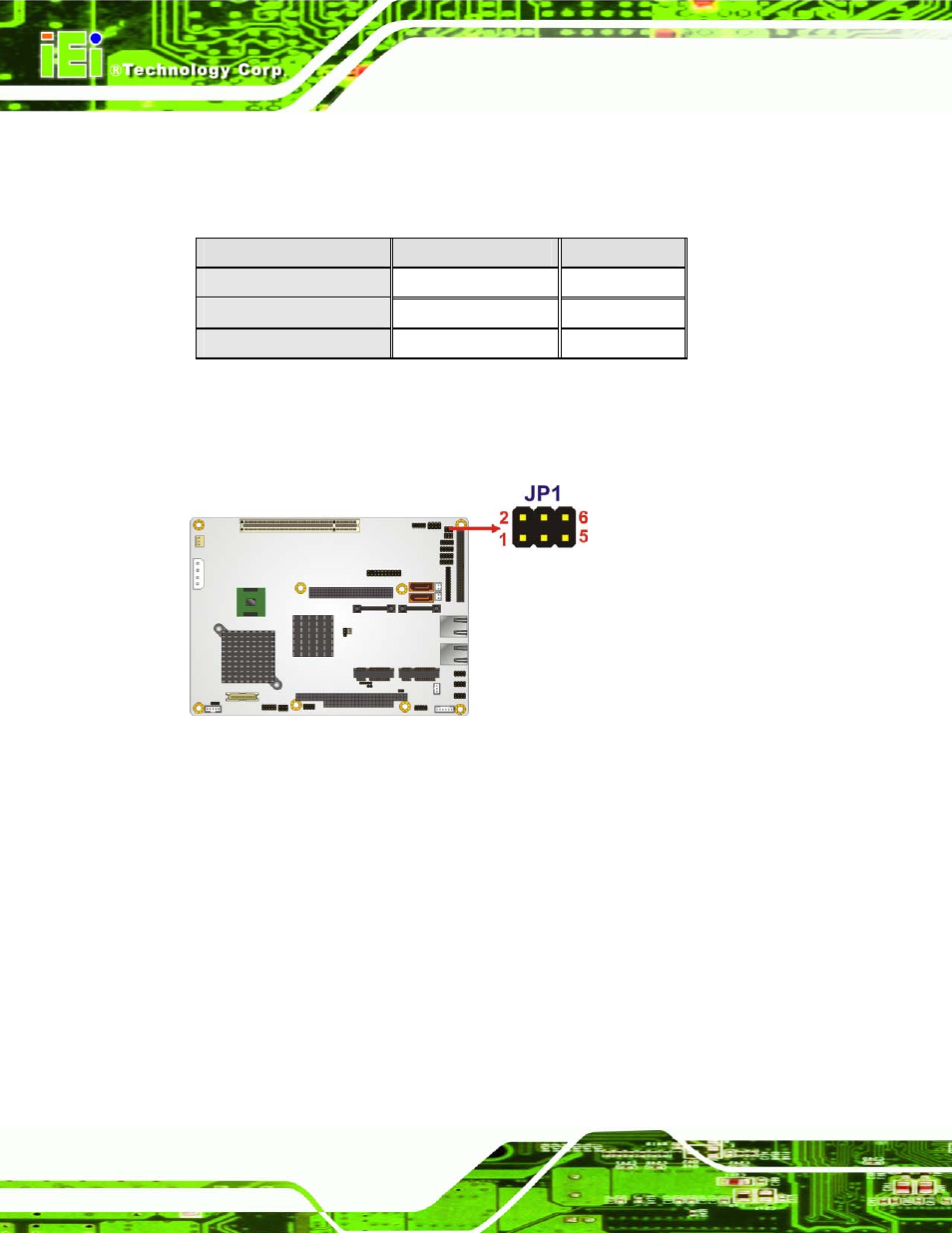

Figure 5-7: COM 3 Function Select Jumper Location
5.5.5 LVDS Panel Resolution Jumper
Jumper Label: J_LCD_TYPE1
Jumper Type: 8-pin header
Jumper Settings: See
797H
Table 5-6
Jumper Location: See
798H
Figure 5-8
The LVDS Panel Resolution jumper allows the resolution of the LVDS screens connected
to the LVDS1 connector to be configured. The LVDS Panel Resolution jumper settings are
shown in
799H
Table 5-6.
