4.3.16 SATA Drive Connectors

CN Label:

SATA1 and SATA2

CN Type:

7-pin SATA drive connectors

CN Location:

See

793H757H

Figure 4-18

CN Pinouts:

See

794H758H

Table 4-18

The two SATA drive connectors are each connected to a first generation SATA drive. First

generation SATA drives transfer data at speeds as high as 150 Mb/s. The SATA drives

can be configured in a RAID configuration.

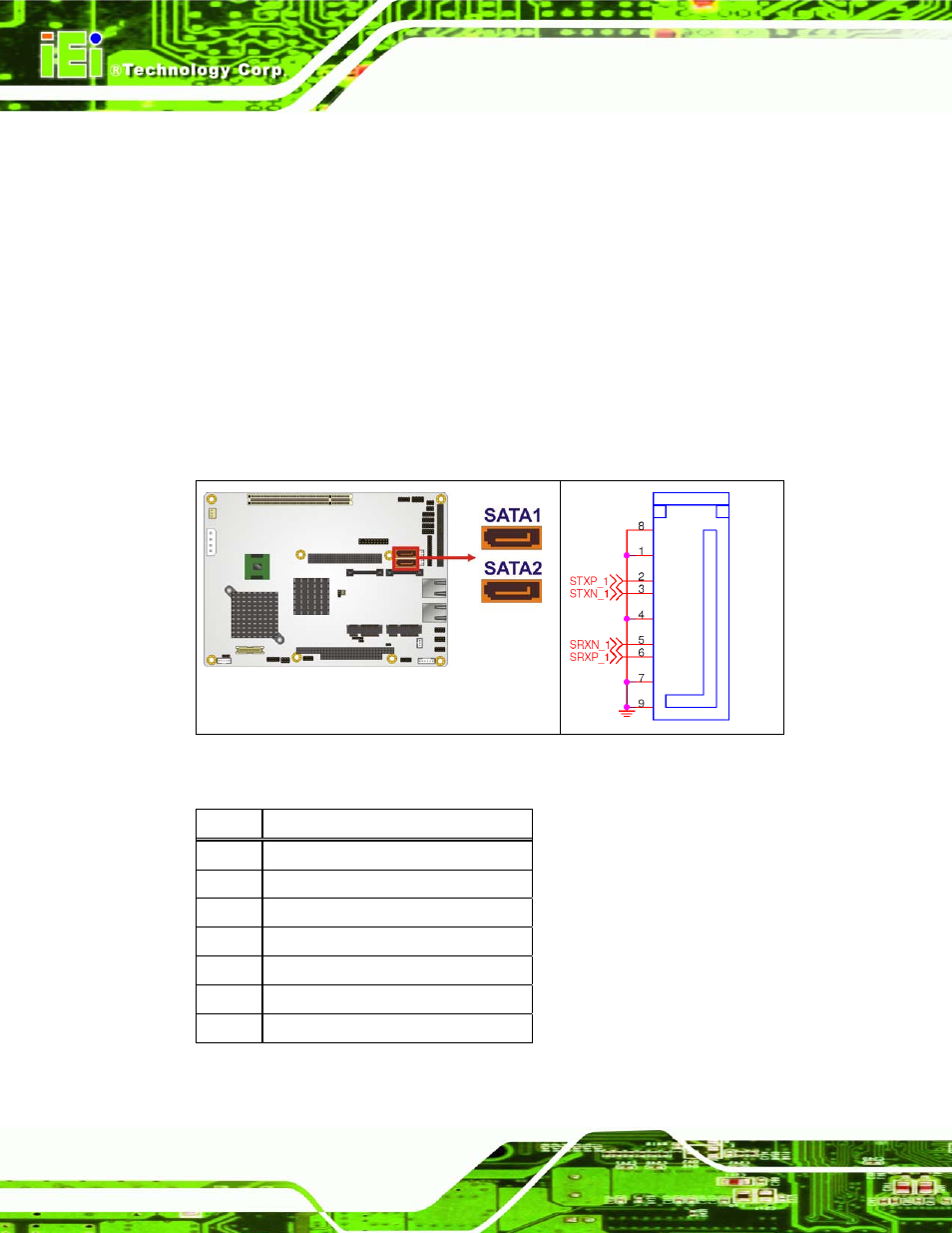

Figure 4-18: SATA Drive Connector Locations

PIN NO. DESCRIPTION

1 GND

2 TX+

3 TX-

4 GND

5 RX-

6 RX+

7 GND

Table 4-18: SATA Drive Connector Pinouts
