4.3.12 Keyboard/Mouse Connector

CN Label:

KB1

CN Type:

6-pin wafer (1x6)

CN Location:

See

749H

Figure 4-14

CN Pinouts:

See

750H

Table 4-14

The keyboard and mouse connector can be connected to a standard PS/2 cable or PS/2

Y-cable to add keyboard and mouse functionality to the system.

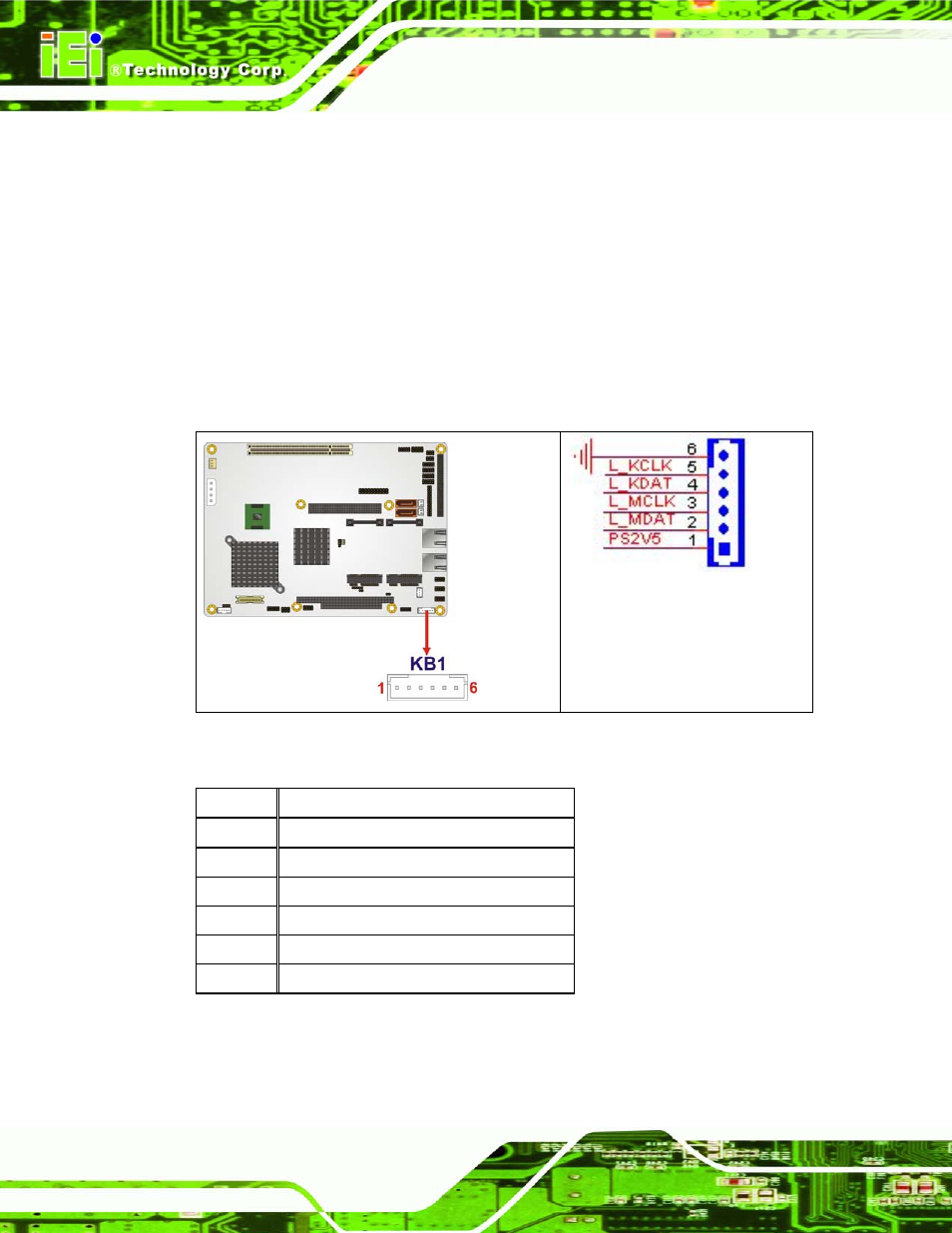

Figure 4-14: Keyboard/Mouse Connector Location

PIN NO.

DESCRIPTION

1 PS2V5

2 L_MS_DATA

3 L_MS_CLK

4 L_KB_DATA

5 L_KB_CLK

6 GROUND

Table 4-14: Keyboard/Mouse Connector Pinouts
