NOVA-945GSE 5.25” SBC
Page 42

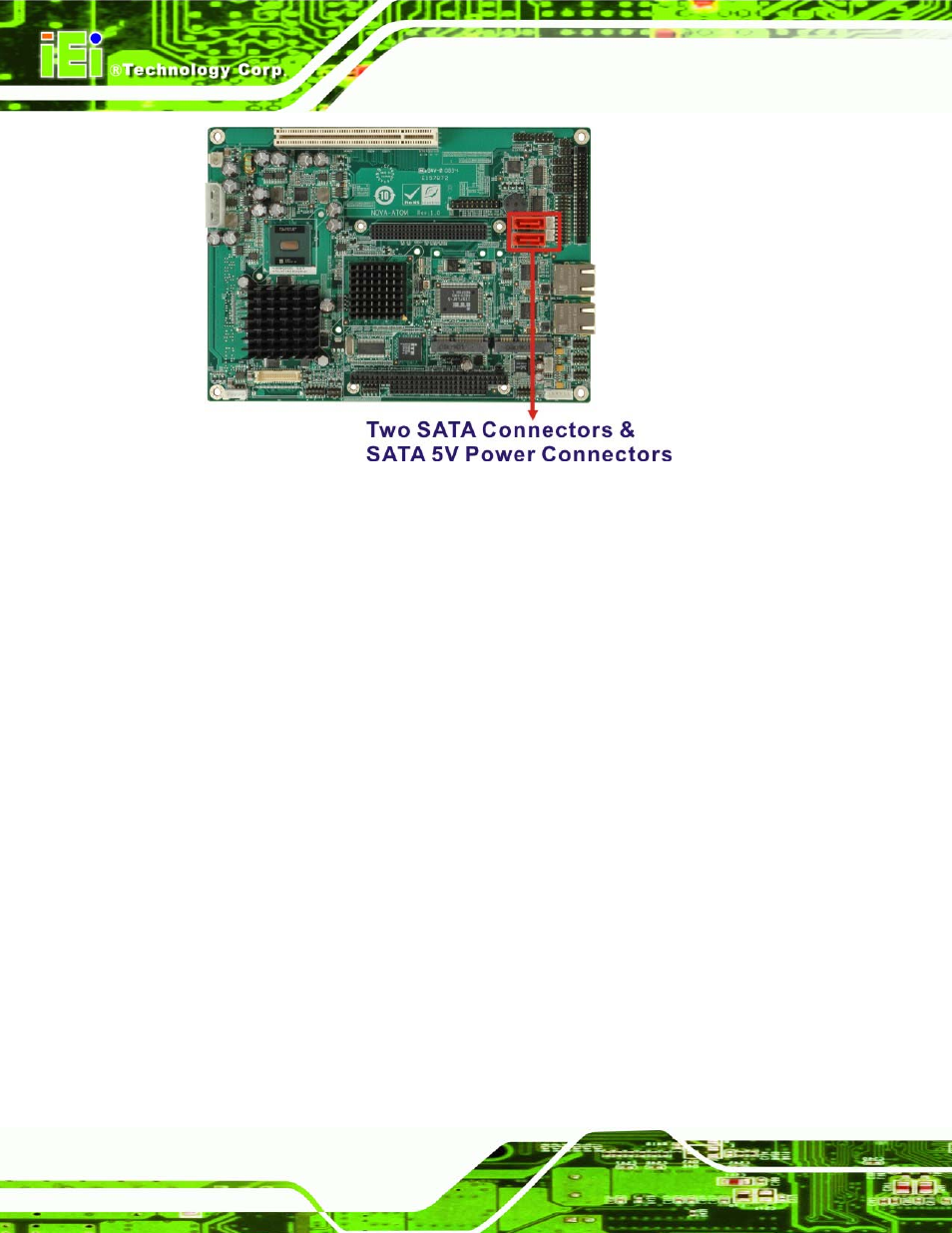

Figure 2-13: SATA Connectors
SATA controller specifications are listed below.
Supports four SATA drives
Supports 1.5 Gb/s data transfer speeds
Supports Serial ATA Specification, Revision 1.0a
2.5.8 Intel
®
ICH7-M USB Controller
Up to six high-speed, full-speed or low-speed USB devices are supported by the ICH7-M
on the NOVA-945GSE. High-speed USB 2.0, with data transfers of up to 480MB/s, is
enabled with the ICH7-M integrated Enhanced Host Controller Interface (EHCI) compliant
host controller. USB full-speed and low-speed signaling is supported by the ICH7-M
integrated Universal Host Controller Interface (UHCI) controllers.
The six USB ports implemented on the NOVA-945GSE are connected to three internal
connectors. See
714H
Figure 2-14.
