NOVA-945GSE 5.25” SBC

Page 22

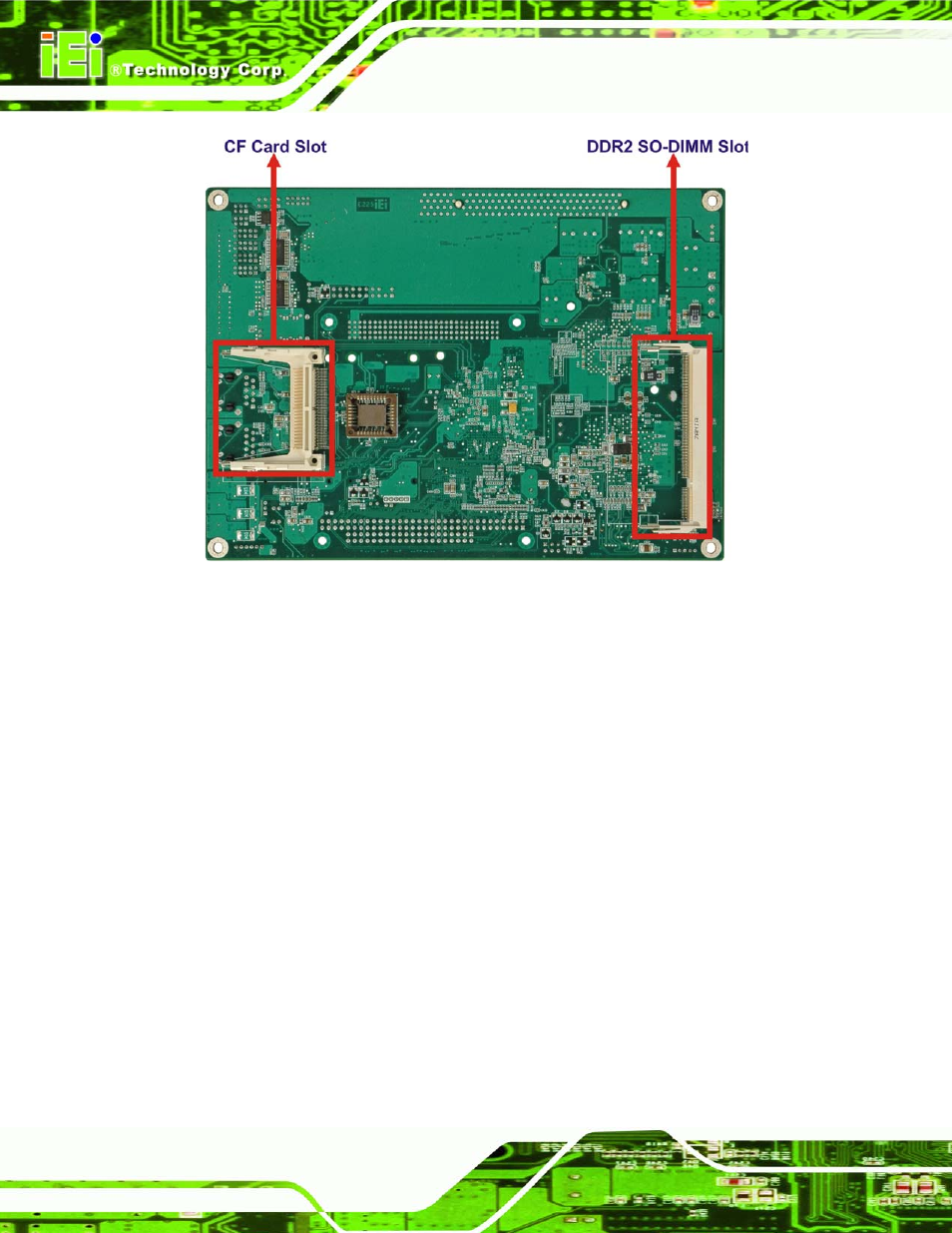

Figure 1-3: NOVA-945GSE Overview [Solder Side]

1.2.2 NOVA-945GSE Peripheral Connectors and Jumpers

The NOVA-945GSE has the following connectors on-board:

1 x +12V power source connector

1 x Audio connector

1 x ATX power control connector

1 x Backlight inverter connector

1 x CompactFlash® socket

1 x CRT connector

1 x Digital input/output (DIO) connector

1 x Fan connector

1 x Front panel connector

1 x IDE disk drive connectors (44-pin)

1 x Infrared interface (IrDA) connector

1 x Keyboard/mouse connector

1 x LVDS connector
