NOVA-945GSE 5.25” SBC
Page 74
4.3.15 SDVO Connector
CN Label:
CN3
CN Type:
47-pin connector (1x47)
CN Location:
See
755H
Figure 4-17
CN Pinouts:
See
756H
Table 4-17
The SDVO (Serial Digital Video Out) port B connector supports additional video signaling
interfaces.

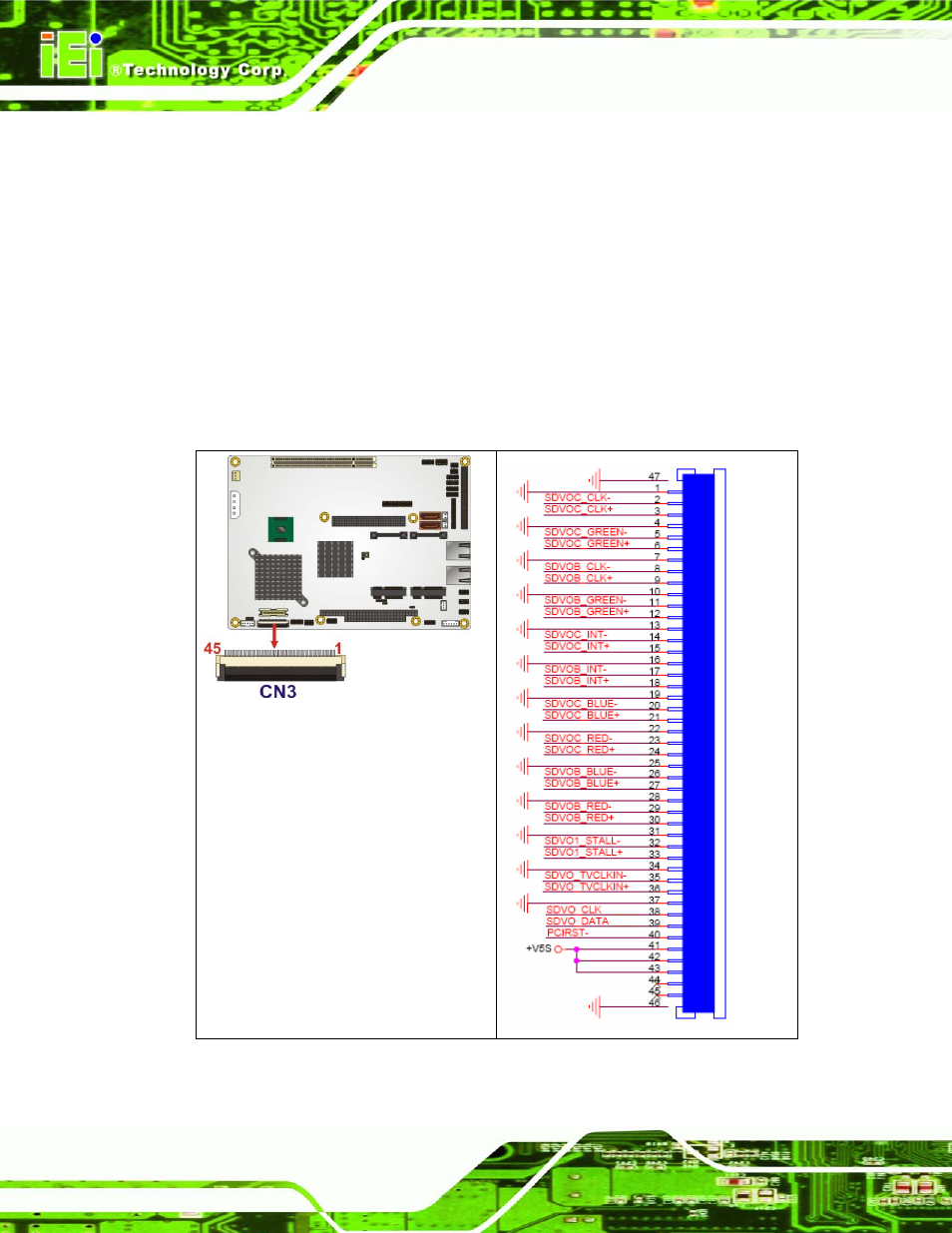

Figure 4-17: SDVO Connector Pinout Locations
