NOVA-945GSE 5.25” SBC
Page 73

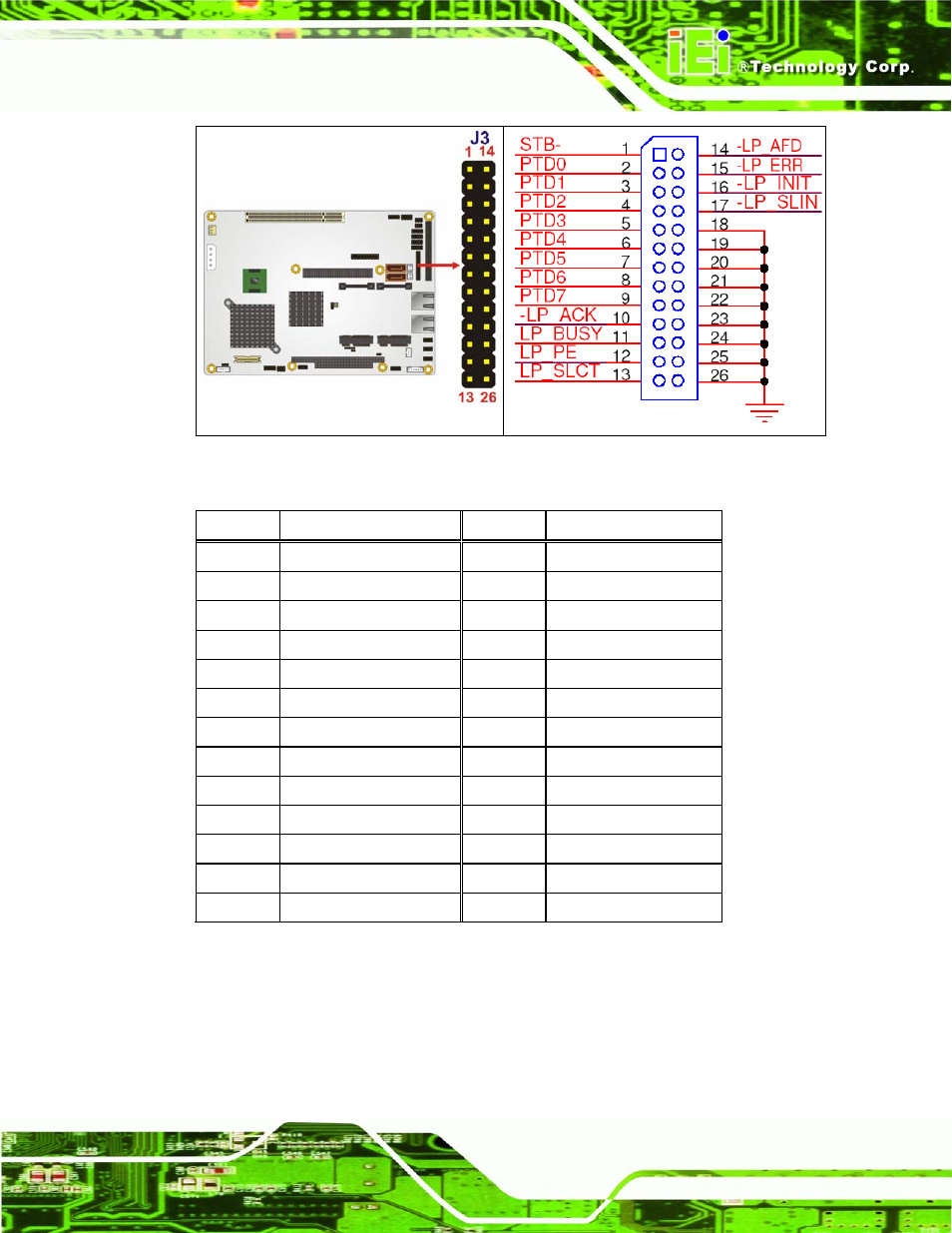

Figure 4-16: Parallel Port Connector Location
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 STROBE 14 ALF
2 PD0 15 ERROR
3 PD1 16 PAR INI
4 PD2 17 SLINTIN
5 PD3 18 GND
6 PD4 19 GND
7 PD5 20 GND
8 PD6 21 GND
9 PD7 22 GND
10 ACK 23 GND
11 BUSY 24 GND
12 PE 25 GND
13 SLCT 26 GND
Table 4-16: Parallel Port Connector Pinouts
