2.4 Intel 945GSE Northbridge Chipset
2.4.1 Intel® 945GSE Overview
The Intel® 945GSE Graphics and Memory Controller Hub (GMCH) supports the
embedded Intel® Atom™ N270 processor. The Intel® 945GSE is interfaced to the
processor through a 533 MHz FSB.
2.4.2 Intel® 945GSE DDR2 Controller
There is one 200-pin DDR2 SO-DIMM socket on the NOVA-945GSE. The socket supports
DDR2 SO-DIMM with the following specifications:
Maximum Memory supported 2 GB
Support for DDR2 at 400 MHz and 533 MHz
No support for Dual-Channel Interleaved mode of operation
Enhanced Addressing support (Swap only)
The SO-DIMM socket is shown in
704H
Figure 2-6 below.

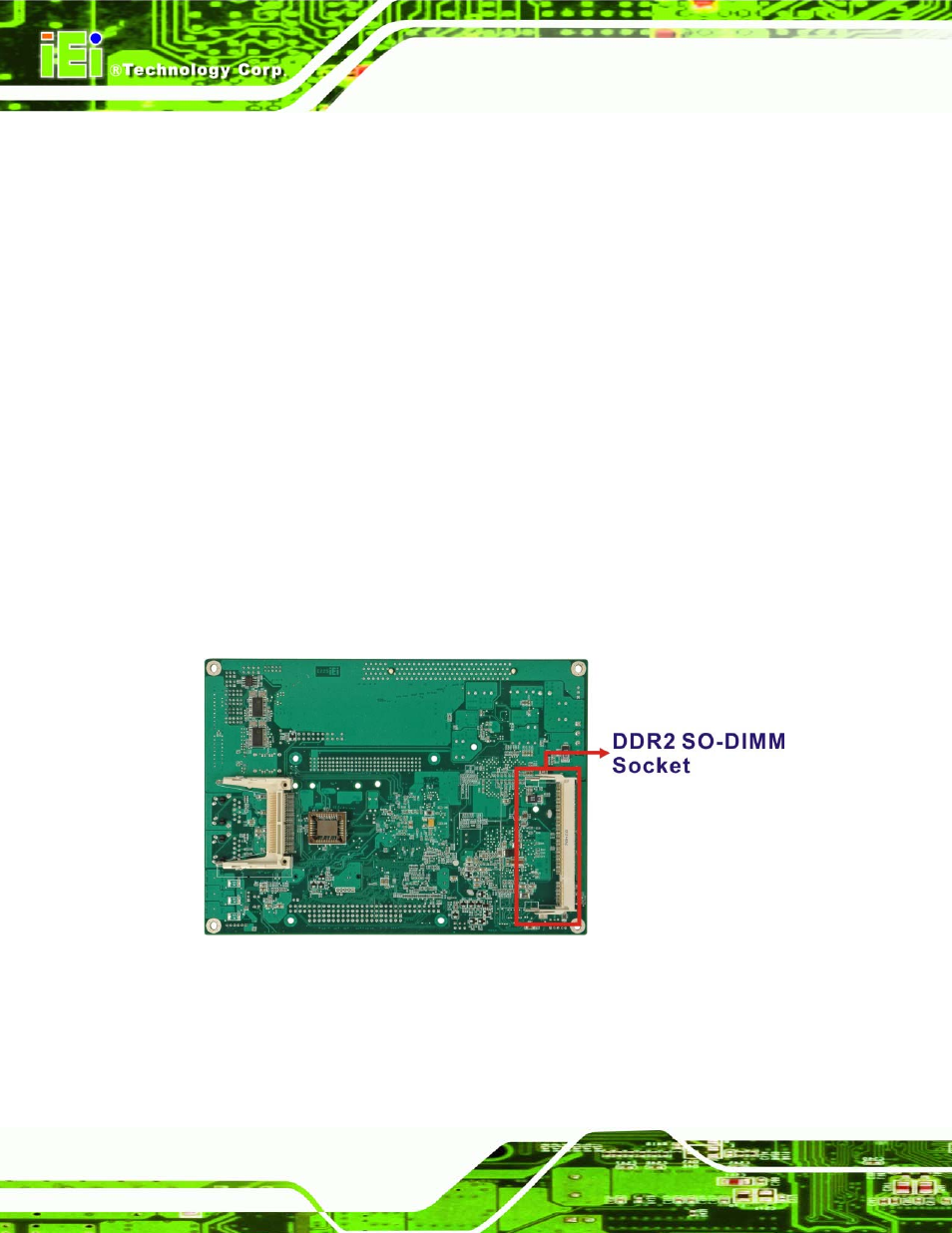

Figure 2-6: DDR2 SO-DIMM Socket
