NOVA-945GSE 5.25” SBC
Page 95
After having done one of the above, save the changes and exit the CMOS Setup menu.
The clear CMOS jumper settings are shown in
832H791H
Table 5-4.
Clear CMOS Description
Short 1 - 2 Keep CMOS Setup Default
Short 2 - 3 Clear CMOS Setup
Table 5-4: Clear CMOS Jumper Settings
The location of the clear CMOS jumper is shown in
833H792H
Figure 5-6 below.

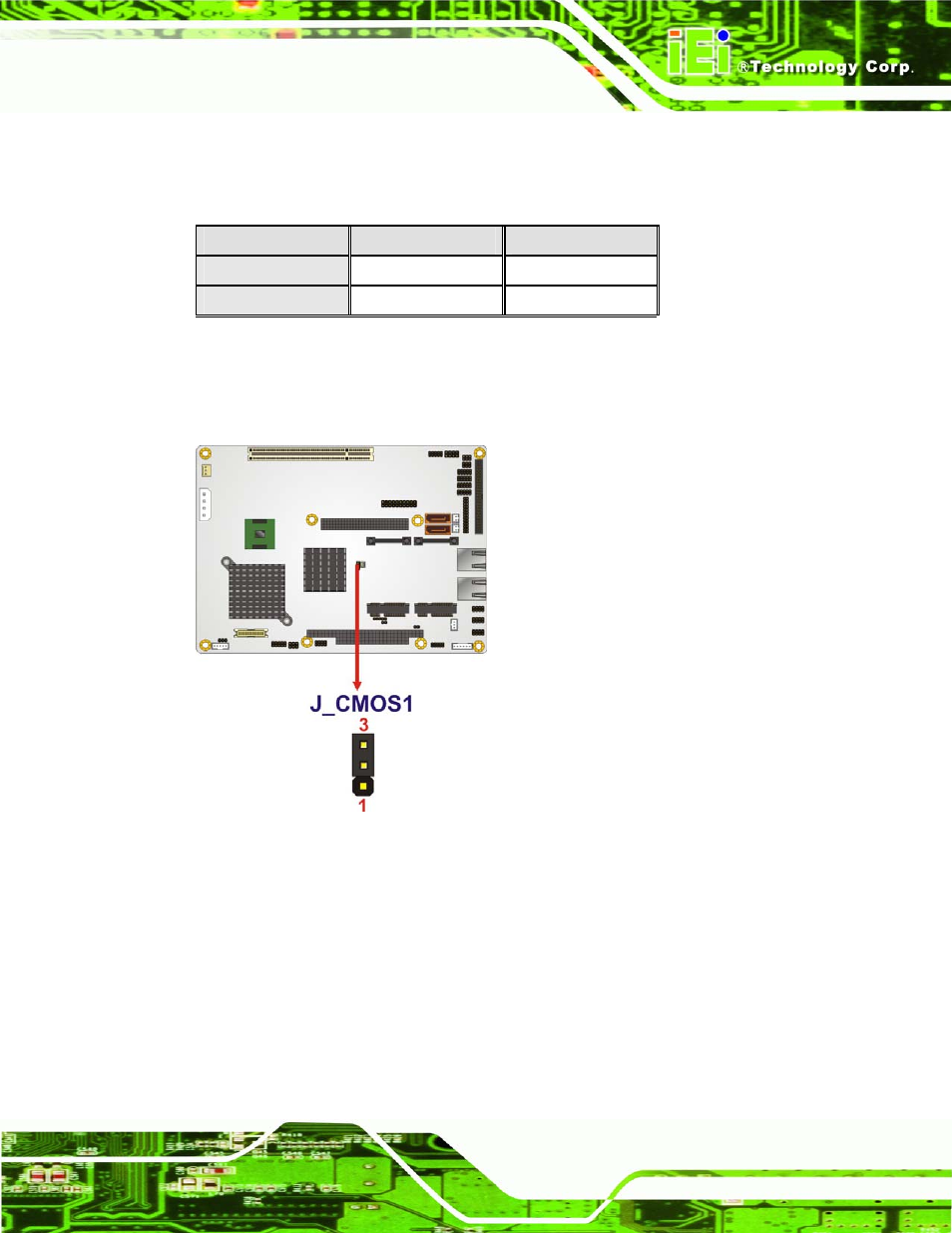

Figure 5-6: Clear CMOS Jumper
5.5.4 COM 3 Function Select Jumper
Jumper Label: JP1
Jumper Type: 6-pin header
Jumper Settings: See
793H
Table 5-5
Jumper Location: See
794H
Figure 5-7
