4.3.17 SATA Power Connectors

CN Label:

CN1 and CN2

CN Type:

2-pin wafer

CN Location:

See

793H759H

Figure 4-19

CN Pinouts:

See

794H760H

Table 4-19

The SATA power connector provides +5V power to the SATA drive.

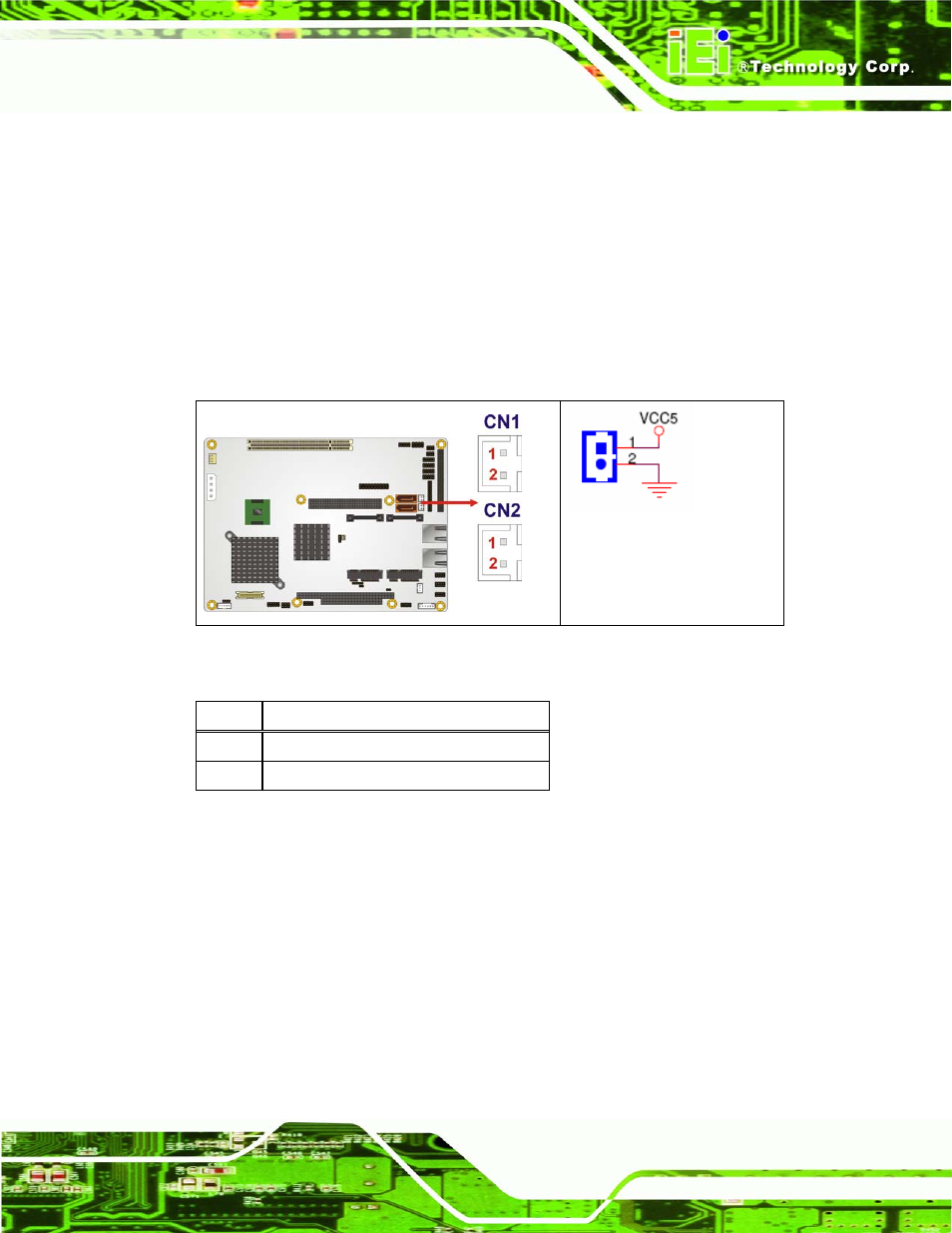

Figure 4-19: SATA Power Connector Locations

PIN NO. DESCRIPTION

1 +5V

2 GND

Table 4-19: SATA Power Connector Pinouts

4.3.18 Serial Port Connectors (COM 1 ~ COM 4)

CN Label:

COM1, COM2, COM3 and COM4

CN Type:

10-pin header (2x5)

CN Location:

See

795H761H

Figure 4-20

CN Pinouts:

See

796H762H

Table 4-20
