NOVA-945GSE 5.25” SBC

Page 105

Step 3:

Connect the cable to the SATA disk. Connect the connector on the other end

of the cable to the connector at the back of the SATA drive. See

811H

Figure 5-14.

Step 4:

Connect the SATA power cable. Connect the SATA power connector to the

back of the SATA drive. See

812H

Figure 5-14.

Step 0:

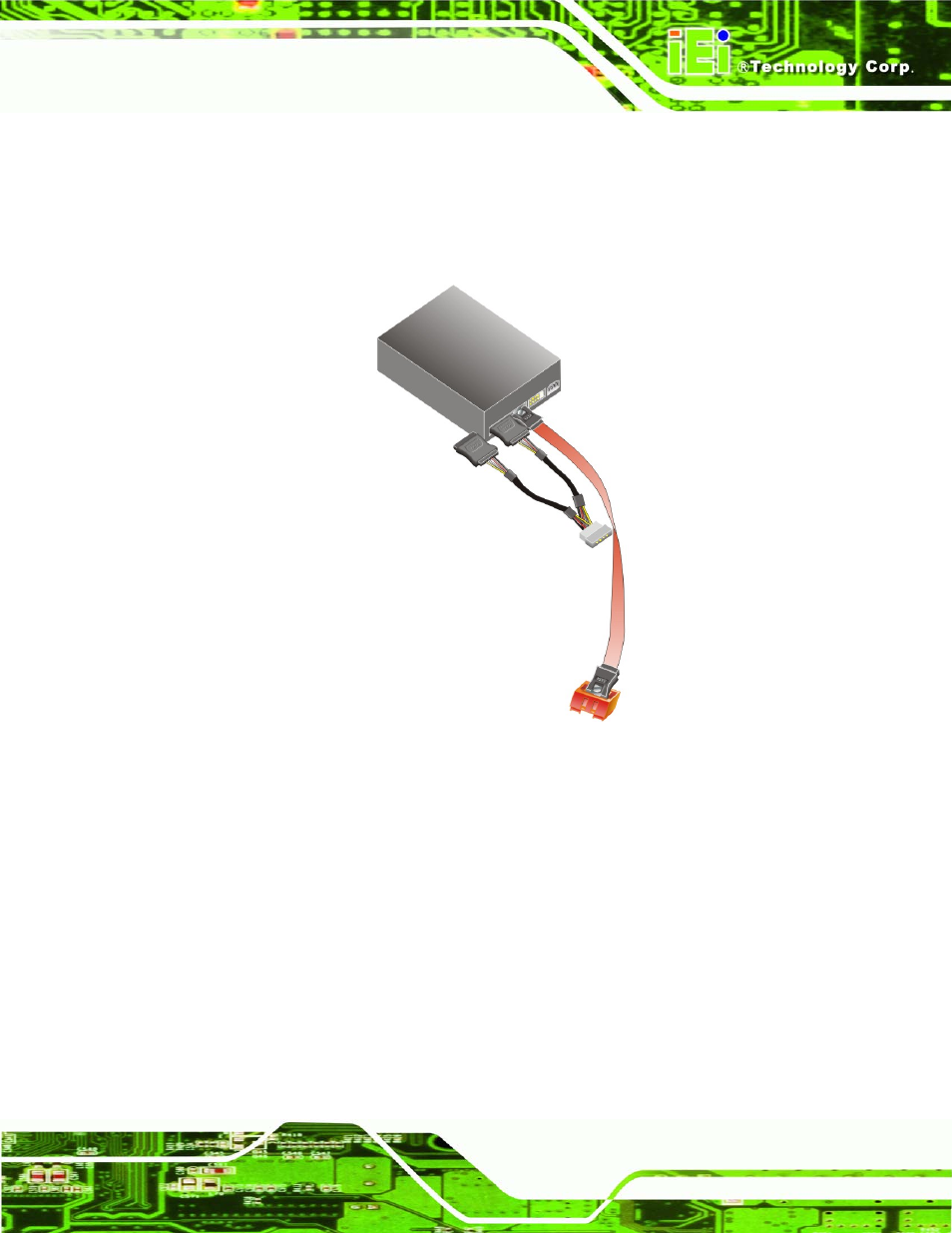

Figure 5-14: SATA Power Drive Connection

5.7.6 USB Cable (Dual Port without Bracket)

The NOVA-945GSE is shipped with a dual port USB 2.0 cable. To connect the USB cable

connector, please follow the steps below.

Step 1:

Locate the connectors. The locations of the USB connectors are shown in

Chapter 3.
