NOVA-945GSE 5.25” SBC

Page 67

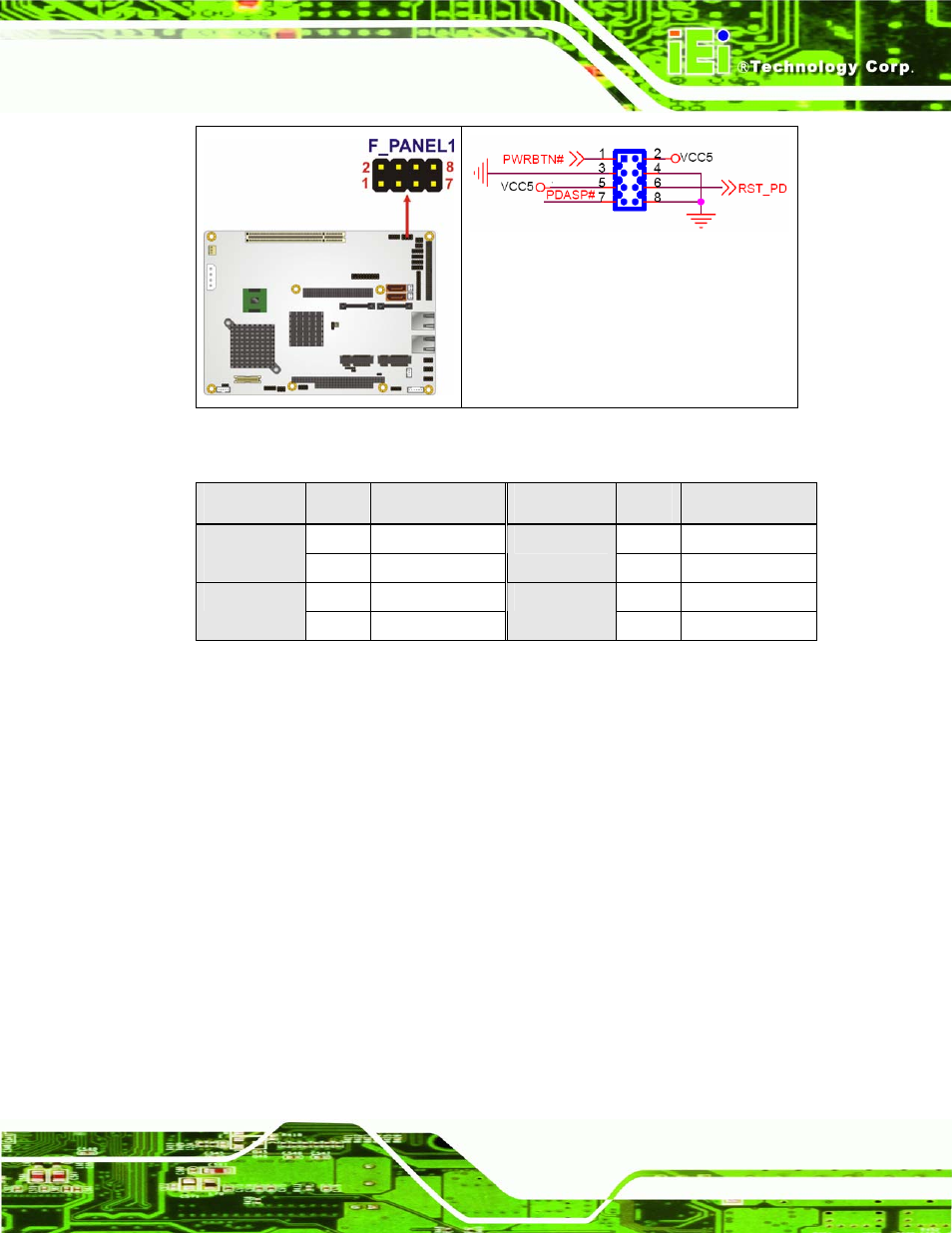

Figure 4-11: Front Panel Connector Pinout Locations (8-pin)

FUNCTION

PIN

DESCRIPTION

FUNCTION

PIN

DESCRIPTION

1 PWR_BTN

2 VCC5

Power

Button

3 GND

Power LED

4 GND

5 HDD_LED+

6 SYSRST-

HDD LED

7 HDD_LED-

Reset

8 GND

Table 4-11: Front Panel Connector Pinouts (8-pin)

4.3.10 IDE Connector (44-pin)

CN Label:

IDE1

CN Type:

44-pin box header (2x22)

CN Location:

See

785H745H

Figure 4-12

CN Pinouts:

See

786H746H

Table 4-12

One 44-pin IDE device connector on the NOVA-945GSE supports connectivity to two hard

disk drives.
