NOVA-945GSE 5.25” SBC

Page 54

4.1 Peripheral Interface Connectors

Section

718H

4.1.1 shows peripheral interface connector locations. Section

719H

4.3

766H

lists all the

peripheral interface connectors seen in Section

720H

4.1.1.

4.1.1 NOVA-945GSE Layout

768H721H

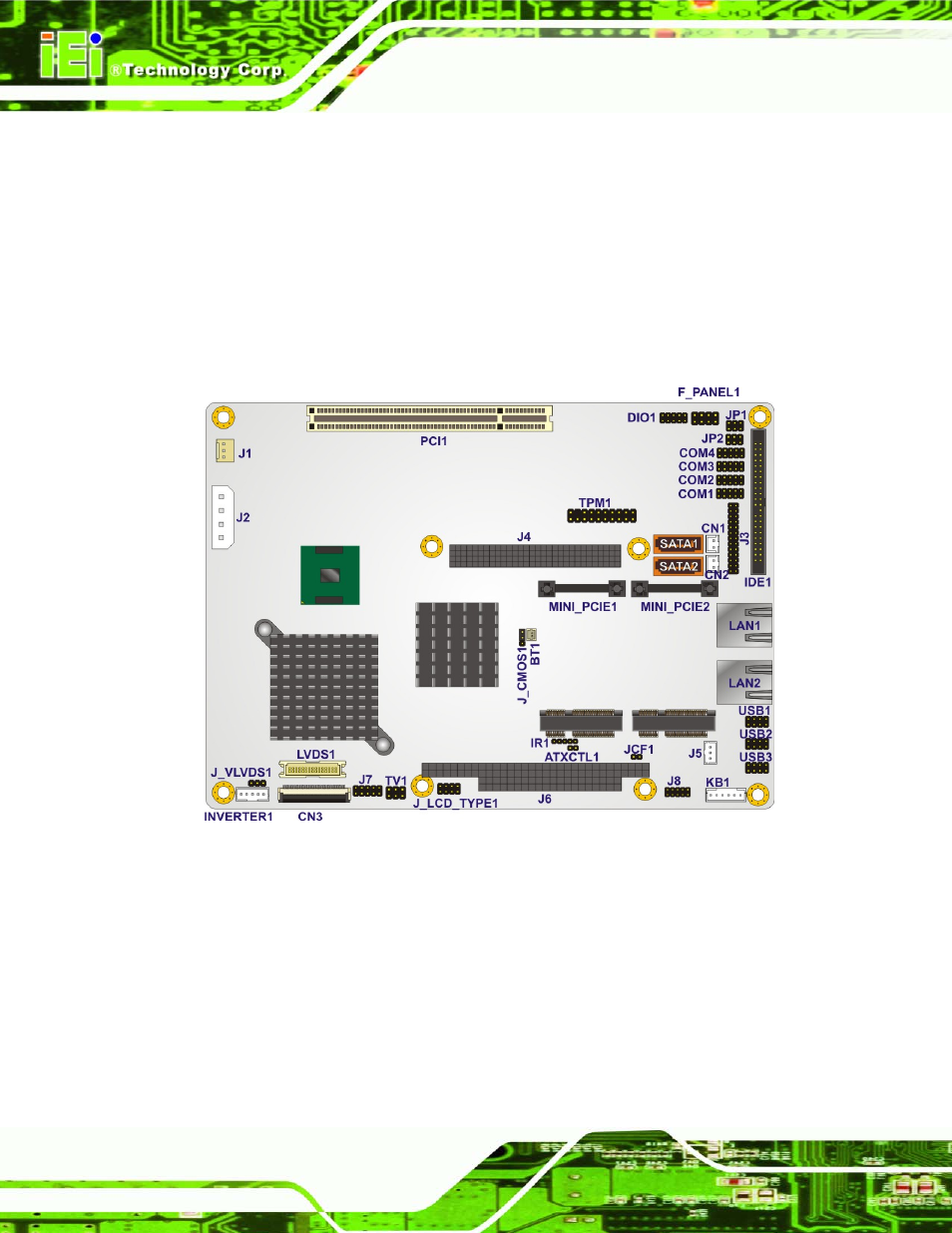

Figure 4-1 shows the on-board peripheral connectors, rear panel peripheral connectors

and on-board jumpers.

Figure 4-1: Connector and Jumper Locations [Front Side]

722H

Figure 4-2 shows the solder side of the NOVA-945GSE.
