NOVA-945GSE 5.25” SBC

Page 106

WARNING:

If the USB pins are not properly aligned, the USB device can burn out.

Step 2:

Align the connectors. The cable has two connectors. Correctly align pin 1on

each cable connector with pin 1 on the NOVA-945GSE USB connector.

Step 3:

Insert the cable connectors. Once the cable connectors are properly aligned

with the USB connectors on the NOVA-945GSE, connect the cable connectors

to the on-board connectors. See

813H

Figure 5-15.

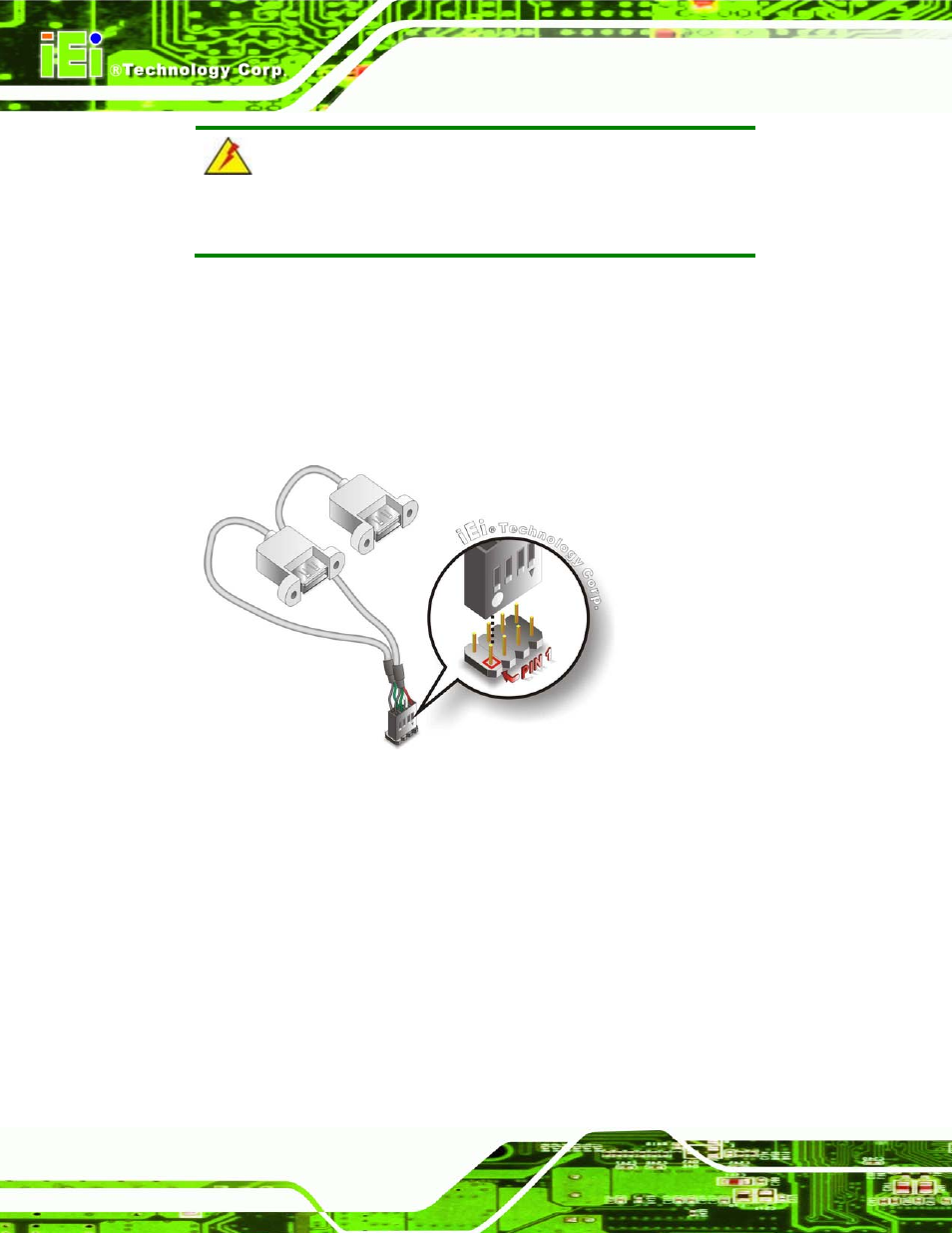

Figure 5-15: Dual USB Cable Connection

Step 4:

Attach the USB connectors to the chassis. The USB 2.0 connectors each of

two retention screw holes. To secure the connectors to the chassis please refer

to the installation instructions that came with the chassis.

Step 0:

5.8 External Peripheral Interface Connection

The following external peripheral devices can be connected to the external peripheral

interface connectors.
