NOVA-945GSE 5.25” SBC
Page 31
2.3.3 Front Side Bus (FSB)
The Intel® Atom™ processor on the NOVA-945GSE is interfaced to the Intel® 945GSE
through a 533 MHz front side bus (FSB). The FSB is shown in
752H703H
Figure 2-5 below.

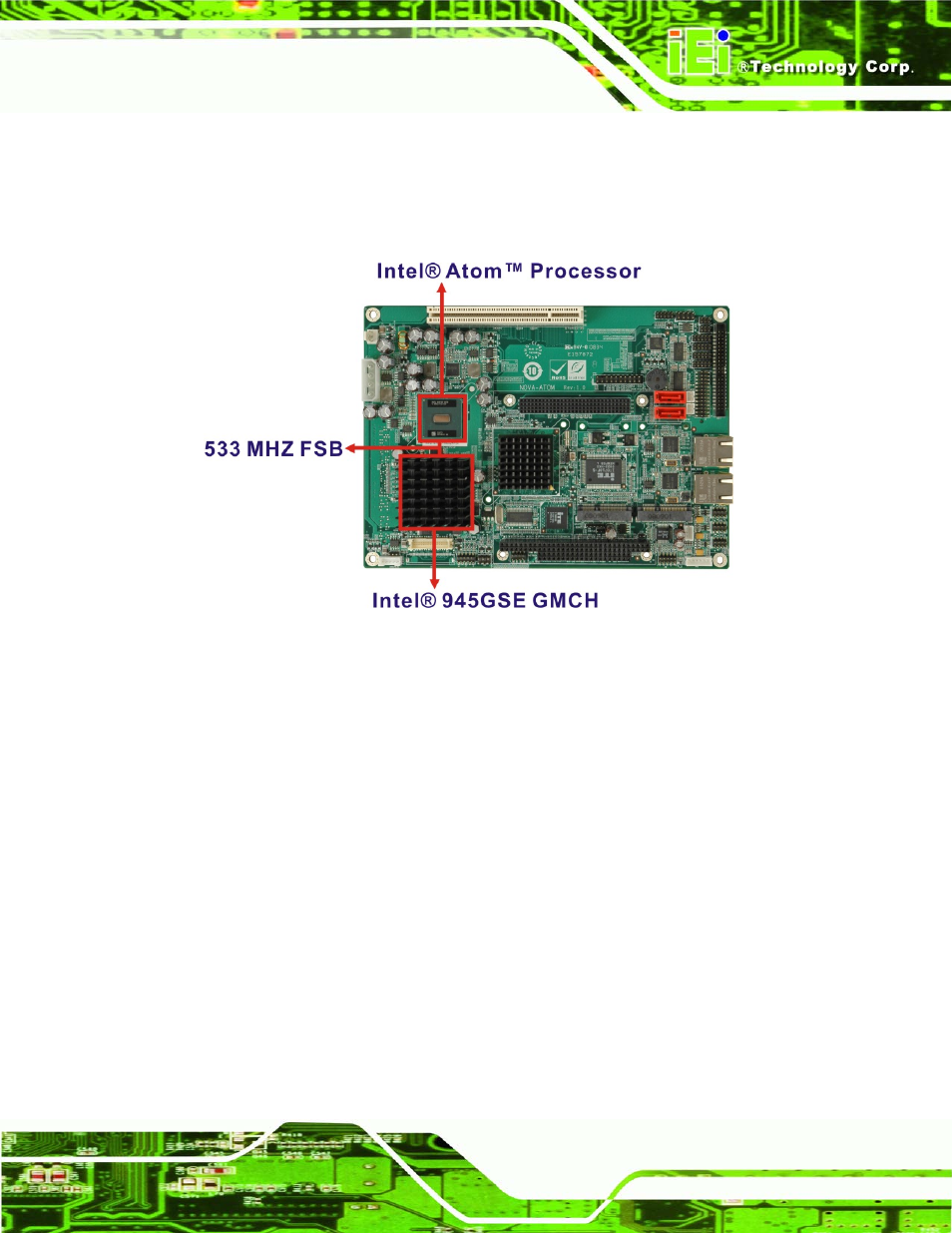

Figure 2-5: Front Side Bus
