NOVA-945GSE 5.25” SBC

Page 69

41 VCC

42 VCC

43 GROUND

44 N/C

Table 4-12: Secondary IDE Connector Pinouts

4.3.11 Infrared Interface Connector (5-pin)

CN Label:

IR1

CN Type:

5-pin header (1x5)

CN Location:

See

787H747H

Figure 4-13

CN Pinouts:

See

788H748H

Table 4-13

The infrared interface connector supports both Serial Infrared (SIR) and Amplitude Shift

Key Infrared (ASKIR) interfaces.

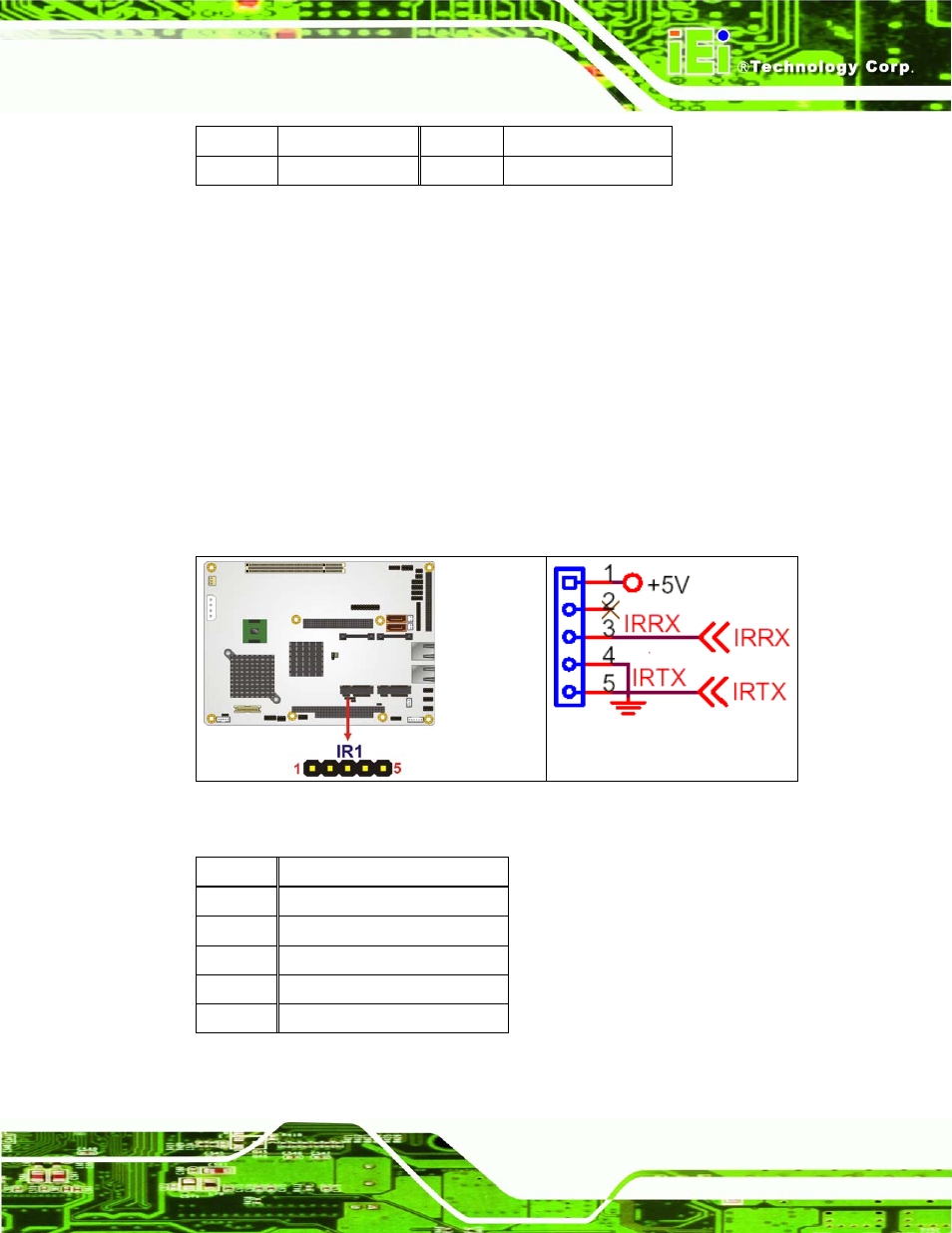

Figure 4-13: Infrared Connector Pinout Locations

PIN NO.

DESCRIPTION

1 VCC

2 NC

3 IR-RX

4 GND

5 IR-TX

Table 4-13: Infrared Connector Pinouts
