NOVA-945GSE 5.25” SBC
Page 102
NOVA-945GSE and branches into two cables that are each connected to a PS/2
connector, one for a mouse and one for a keyboard. To connect the keyboard/mouse
Y-cable connector please follow the steps below.
Step 1: Locate the connector. The location of the keyboard/mouse Y-cable connector
is shown in Chapter 3.
Step 2: Align the connectors. Correctly align pin 1 on the cable connector with pin 1 on
the NOVA-945GSE keyboard/mouse connector. See
807H
Figure 5-11.
Step 3: Insert the cable connectors . Once the cable connector is properly aligned with
the keyboard/mouse connector on the NOVA-945GSE, connect the cable
connector to the on-board connectors. See
808H
Figure 5-11.

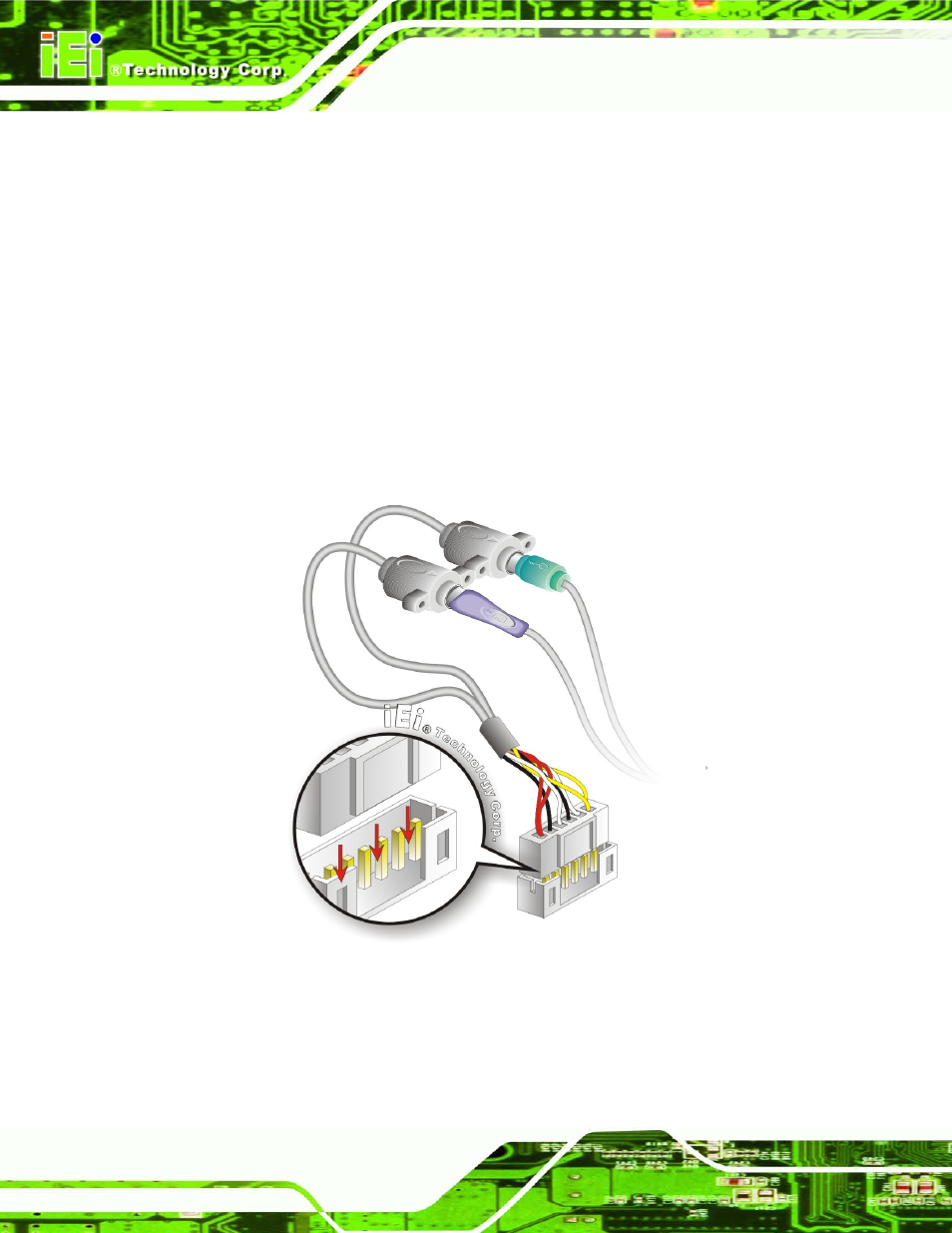

Figure 5-11: Keyboard/mouse Y-cable Connection
Step 4: Attach PS/2 connectors to the chassis. The keyboard/mouse Y-cable
connector is connected to two PS/2 connectors. To secure the PS/2 connectors
to the chassis please refer to the installation instructions that came with the
