2 external interface panel dimensions, 2 data flow – IEI Integration NOVA-945GSE v1.01 User Manual
Page 28
NOVA-945GSE 5.25” SBC
Page 28
2.1.2 External Interface Panel Dimensions
External peripheral interface connector panel dimensions are shown in
748H700H
Figure 2-2.

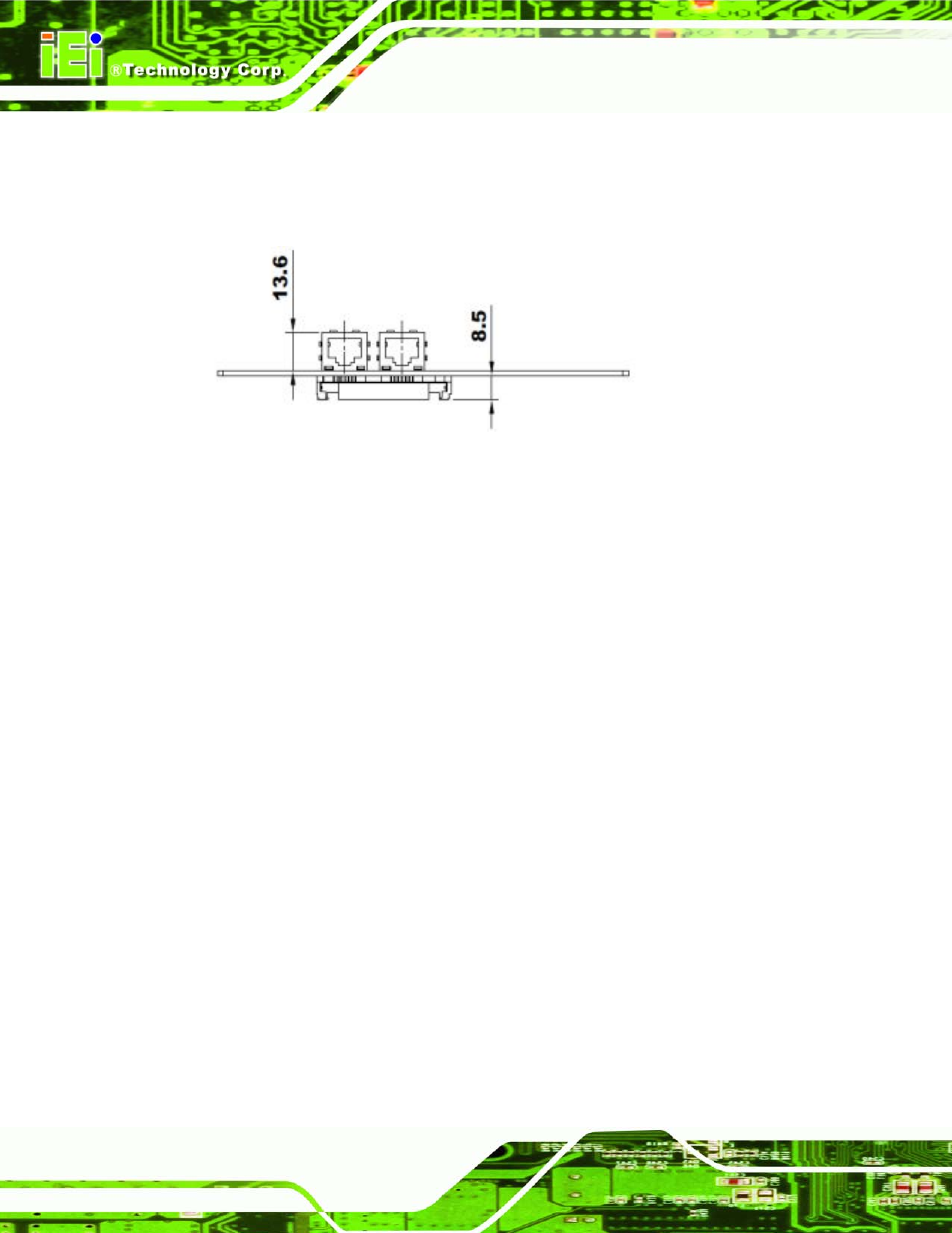

Figure 2-2: External Interface Panel Dimensions (mm)
2.2 Data Flow
749H701H
Figure 2-3 shows the data flow between the two on-board chipsets and other components
installed on the motherboard and described in the following sections of this chapter.
