Page 83

NOVA-945GSE 5.25” SBC

Page 83

4.4 External Peripheral Interface Connector Panel

803H772H

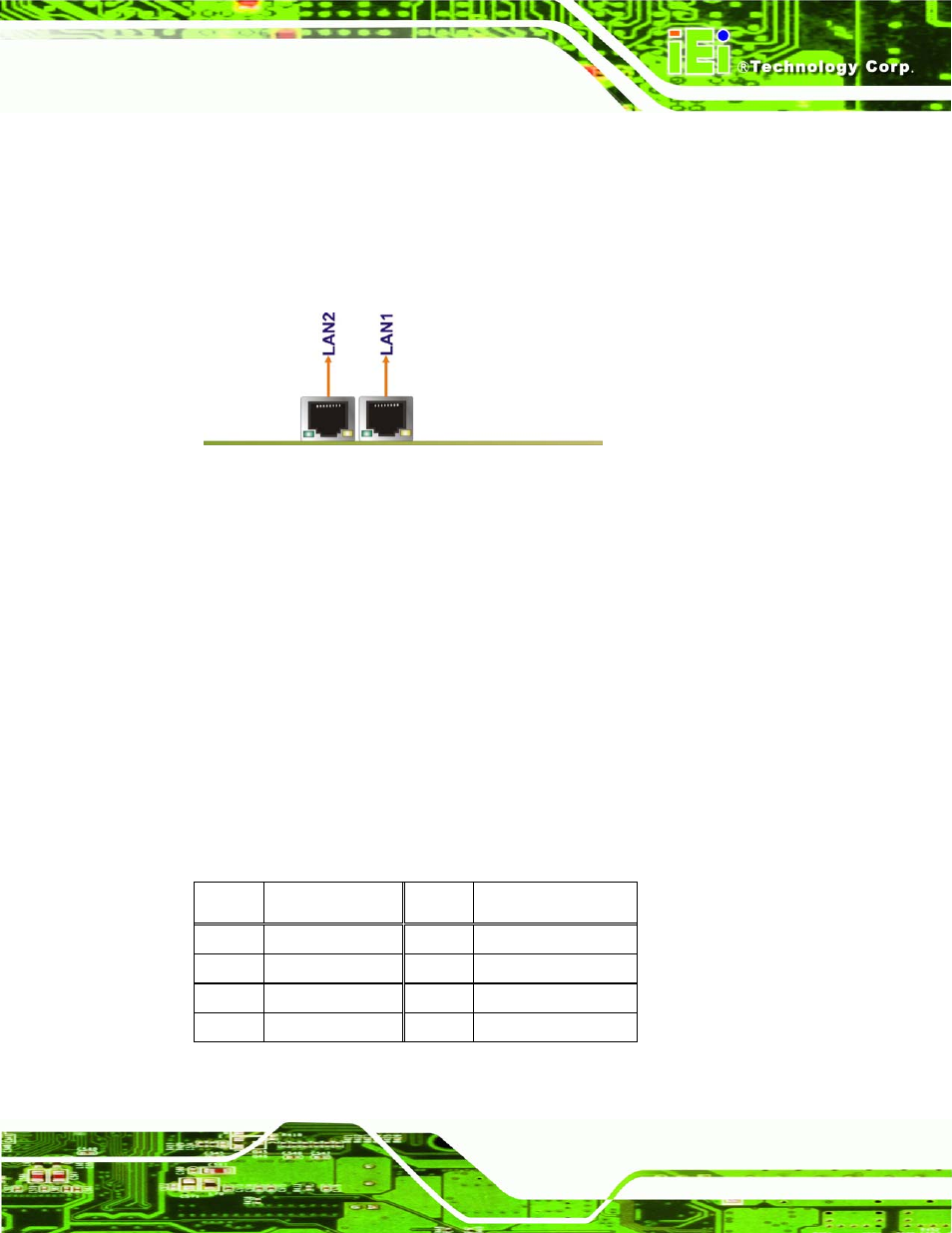

Figure 4-25 shows the NOVA-945GSE external peripheral interface connector (EPIC)

panel. The NOVA-945GSE EPIC panel consists of the following:

2 x RJ-45 LAN connectors

Figure 4-25: NOVA-945GSE External Peripheral Interface Connector

4.4.1 LAN Connectors

CN Label:

LAN1 and LAN2

CN Type:

RJ-45

CN Location:

See

808H773H

Figure 4-25

CN Pinouts:

See

809H774H

Table 4-25

The NOVA-945GSE is equipped with two built-in RJ-45 Ethernet controllers. The

controllers can connect to the LAN through two RJ-45 LAN connectors. There are two

LEDs on the connector indicating the status of LAN. The pin assignments are listed in the

following table:

PIN DESCRIPTION

1 MDIA3-

5 MDIA1+

2 MDIA3+

6 MDIA2+

3 MDIA2-

7 MDIA0-

4 MDIA1-

8 MDIA0+

Table 4-25: LAN Pinouts
